Michigan Wholesale Tool Supply

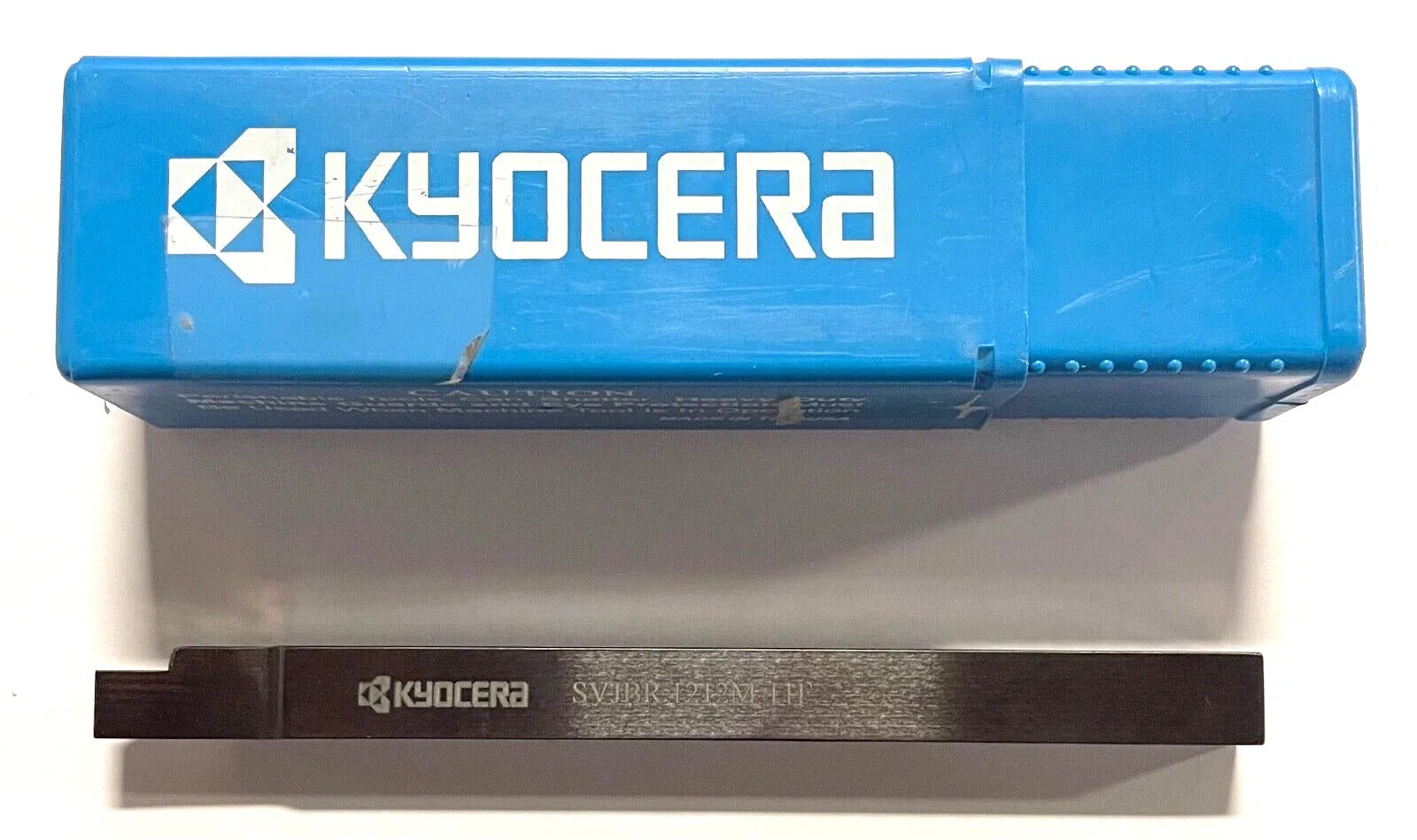

Kyocera SVJBR 1212M11 Indexable Lathe Turning Tool Holder USA Made
Kyocera SVJBR 1212M11 Indexable Lathe Turning Tool Holder USA Made
Regular price
$26.20 USD
Regular price
$0.00 USD
Sale price
$26.20 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Out of stock
Couldn't load pickup availability
KYOCERA
USA MADE
INDEXABLE LATHE TURNING TOOL HOLDER
| Name | Description | Value |
|---|---|---|
| B | shank width | 0.472 in |
| Barcode | Product barcode | 39655024000103 |
| CSP | coolant supply property | 0 |
| CTMS | connection text machine side | 1212 |
| CTWS | connection text workpiece side | VB..1102../VB..21.5. |
| GAMO | rake angle orthogonal | 0.000 deg |
| H | Height of tool holder shank | 0.472 in |
| HAND | Direction of cutting | Right |
| ICS | Insert clamping system | S |
| ItemNumber | Item Number | 02439655 |
| KAPR | tool cutting edge angle | 93.000 deg |
| KAPRC | Tool Cutting Edge Angle Code | J |
| LAMS | inclination angle | 0.000 deg |
| LF | functional length | 5.906 in |
| SC | Insert shape code | V |
| Shanktype | Shanktype | Square shank |
| Weight | Net weight | 0.344 lb |
| VER | Version (Internal/External/Both) | External |
| WF | functional width | 0.472 in |
