Low stock: 2 left

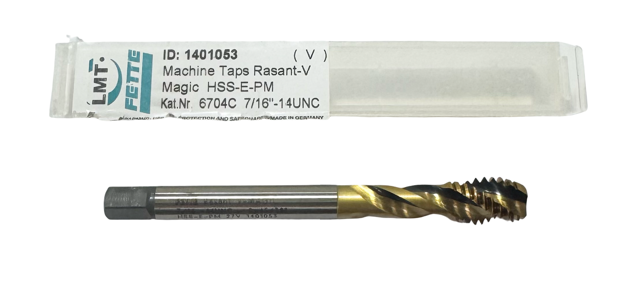

LMT FETTE 7/16"-14 UNC Cobalt Spiral Flute Tap Modified Bottoming 3FL TiCN+

PRODUCT DESCRIPTION

General Product Information
Made In USA	No
Coating	TiCN +
Package Size	1
Application	Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating	High Performance
Shipping State	Illinois
Dimensional Specifications
Thread Size	7/16"
Thread Type	NC/UNC
Flute Direction	R - Right
Dimension Standard	DINSI
Length Type	Standard
Thread Limit	2B/3B
Tap Chamfer	2.0P-3.0P
Tap Square	0.2420
Flutes/Inserts	3
Thread Pitch	14.00TPI
Tool Material	Steel
Overall Len	3.9370 100.00MM
Drill Range	0.3630 9.22MM - 0.3815 9.69MM
Cut Rating	<42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type	Tap Collet
Shank/Pilot Dia	0.3230 8.20MM - P
Tap Style	Cut Spiral Flute
Tap Type	Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat	HSSE-PM
Coolant Thru	No
Industry-Specific Applications
Multi Spindle	Yes
Agricultural	YES
Aerospace	Yes
Automotive	Yes
Job Shop	Yes
Mold	Yes
Medical	Yes
Energy	Yes
