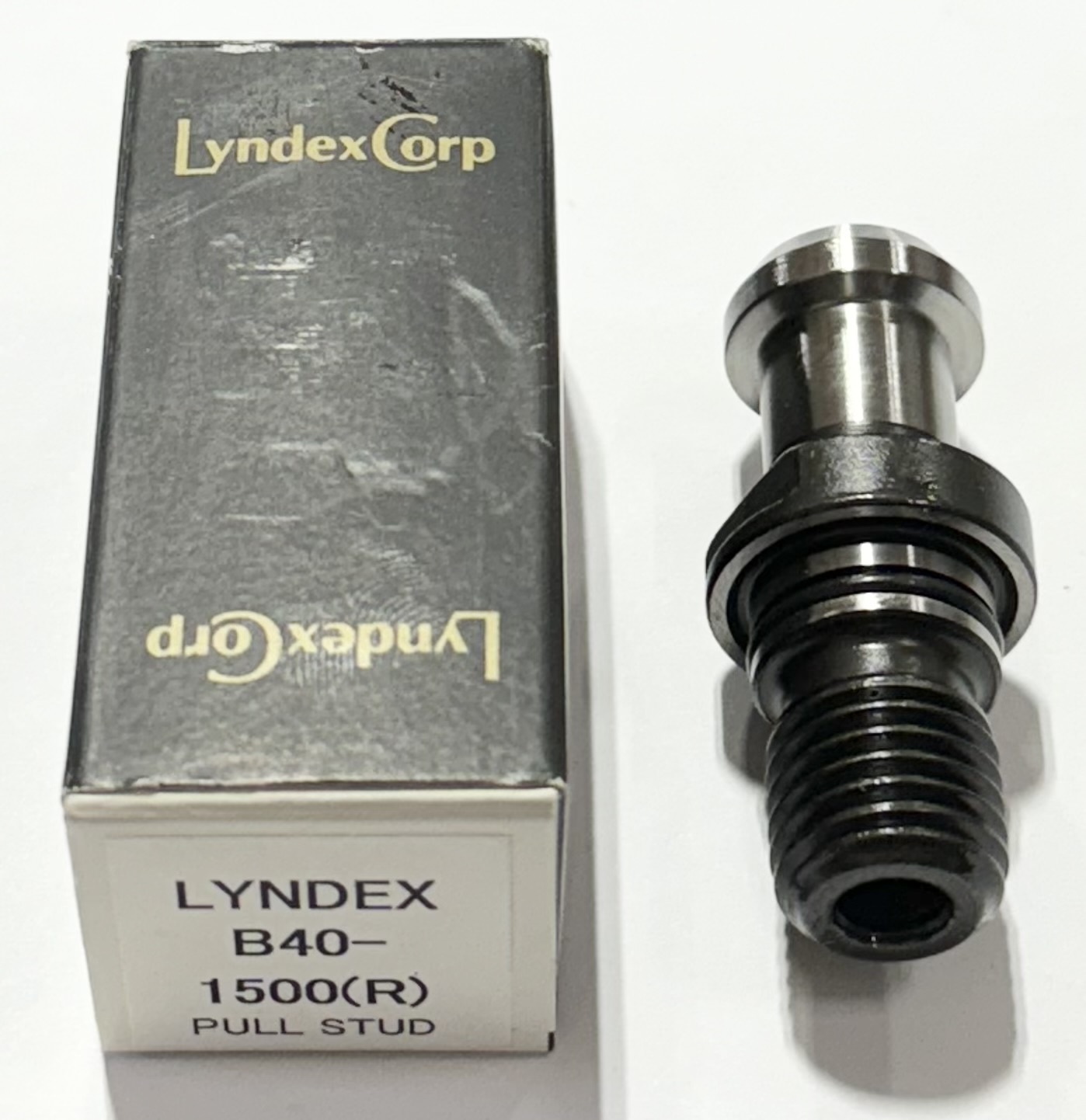

Lyndex Retention Knob Pull Stud B40-1500(R)

PRODUCT DESCRIPTION

Knob Dia.	0.748"
Flange to Angle Length	0.9050 in
Flange to Knob Length	1.141 in
Thread Size	M16
Taper Size	BT40
Shoulder Dia.	0.669"
Overall Length	2.12 in
Neck Dia.	0.5510 in
Coolant Hole Dia.	0.2750 in
Knob Outside Dia.	0.7480 in
Angle Radius	75 Degrees
Flange to End of Knob Length	1.141 in
Neck Diameter	0.551 in
Knob Outside Diameter	0.74 in
Coolant Hole Diameter	0.275 in
Flange to Beginning of Knob Length	0.906 in

Details

Item	Retention Knob
Angle	75 Degrees
Flange Thickness	0.276 in
Coolant Through	Yes
Coolant Fed	Coolant Through
Thread Pitch	2 mm
Standards	JIS 6339
Thread Standard	Class 4g6g Metric
Features	Magnetic Particle Crack Tested, Tensile and Shear Requirements Per JIS 6339
