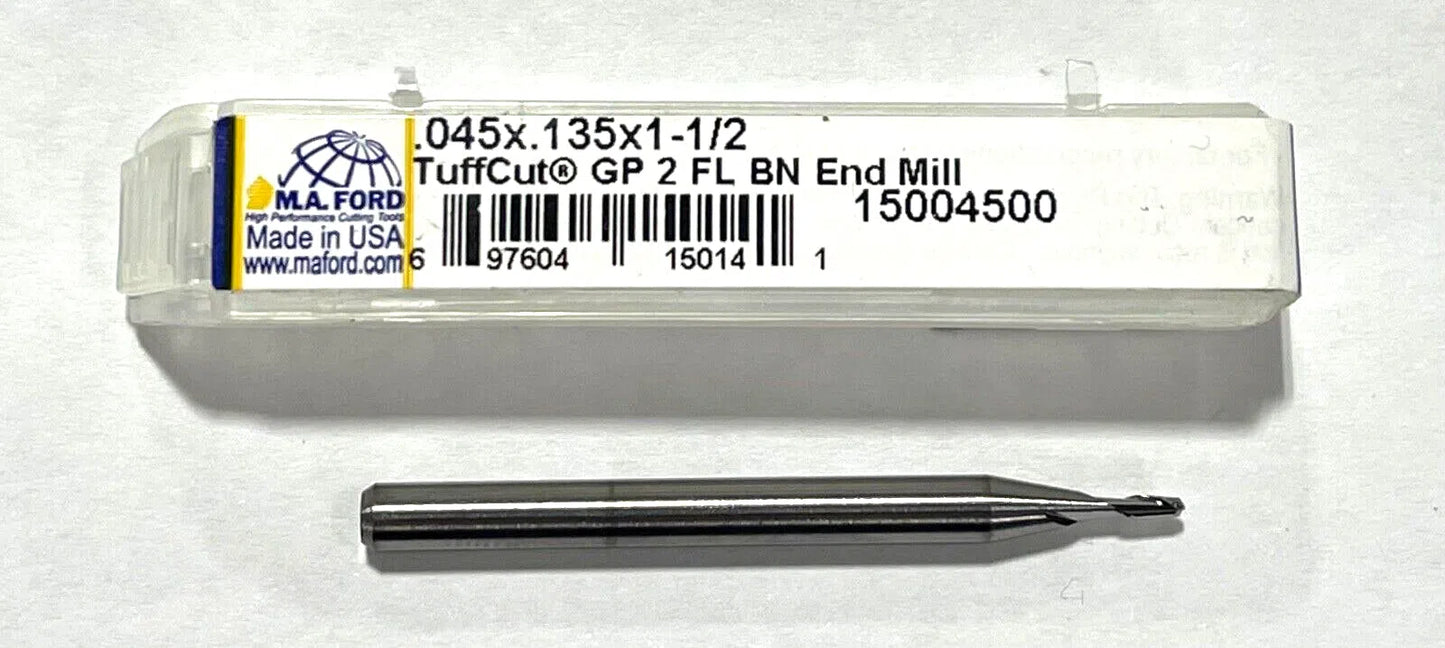

M.A. Ford .045" Carbide Ball Nose End Mill 2 Flute TuffCut General Purpose USA
M.A. Ford .045" Carbide Ball Nose End Mill 2 Flute TuffCut General Purpose USA
Regular price
$6.55 USD
Regular price
$0.00 USD
Sale price
$6.55 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
M.A. FORD
USA MADE
SOLID CARBIDE BALL NOSE END MILL
| Cutting Diameter (DC) | 0.045″ | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 0.135″ |
| Depth of Cut Maximum (APMX) | 0.135″ | Tool Type | Center Cut|High Performance |
| Overall Length (OAL) | 1-1/2″ | Length Group | Standard |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | Uncoated | Decimal Equivalent | 0.045″ |
Product Features
Family Description
Alternate Manufacture # 15014
Remarks
•2 Flute
•Center Cutting
•Standard Length
•30 ° Helix
•Ball Nose
•Straight Shank
•Manufactured with a full ball radius end.
•Designed for milling fillets or similar rounded corners in the bottom of a cut
•Ideal for most ferrous metal applications
