Michigan Wholesale Tool Supply

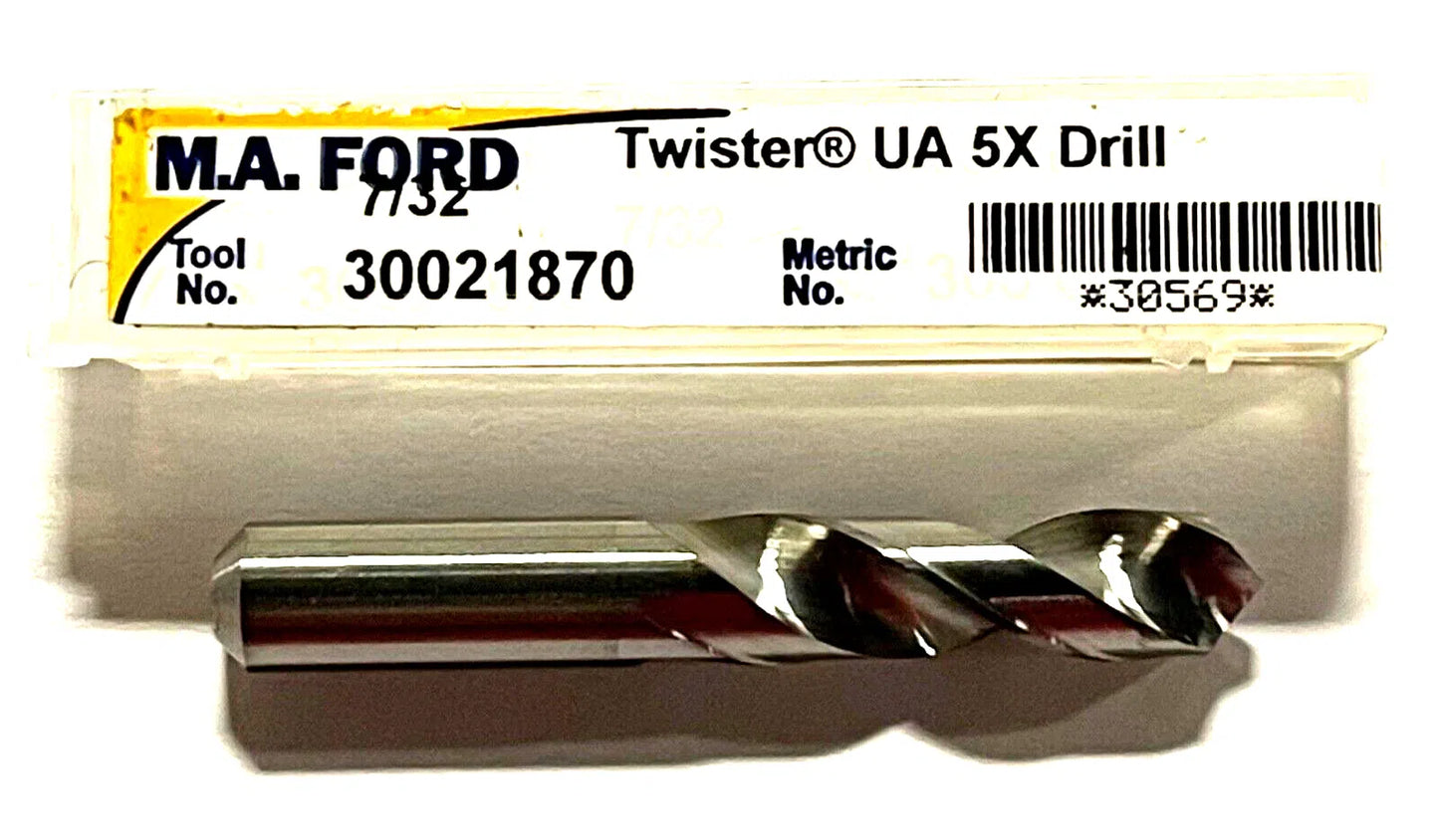

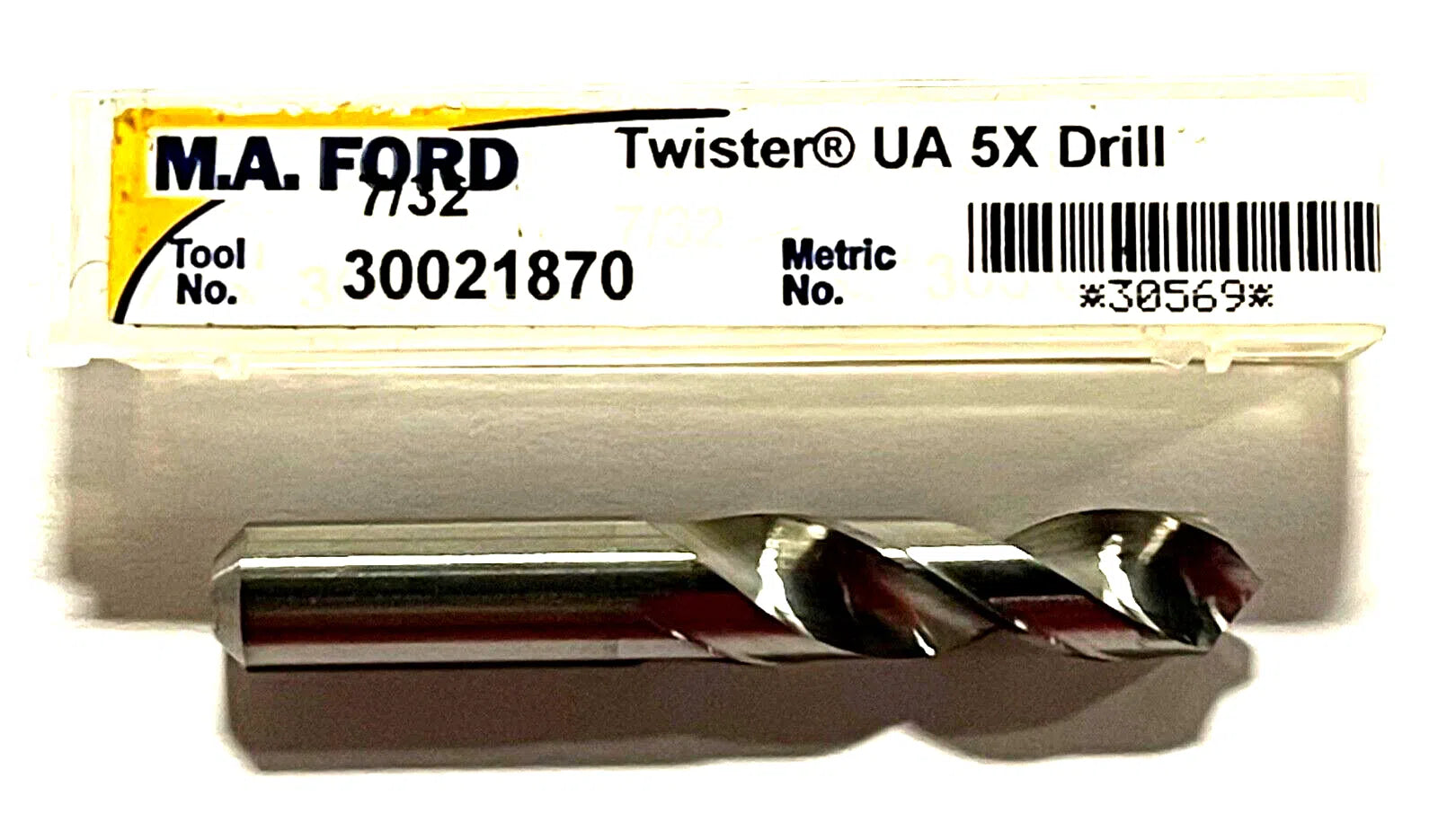

M.A. Ford 7/32" Solid Carbide Circuit Board Drill 118° USA Made
M.A. Ford 7/32" Solid Carbide Circuit Board Drill 118° USA Made
Regular price
$7.49 USD
Regular price
$0.00 USD
Sale price
$7.49 USD
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $25 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $25.
Quantity
Low stock: 6 left
Couldn't load pickup availability
M.A. FORD
USA MADE
SOLID CARBIDE CIRCUIT BOARD DRILL
| Drill Bit Size / Cutting Diameter (DC) | 7/32″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 7/32″ | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.2188″ | Measurement Type | Inch |
| Length Group | 5xD | Series/List # | 300 |
| Coating | Uncoated | Usable Length (LU) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 7/32″ | Length Chip Flute (LCF) | 3/4″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 1-1/2″ |
| Point Angle (SIG) | 118 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 35 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
