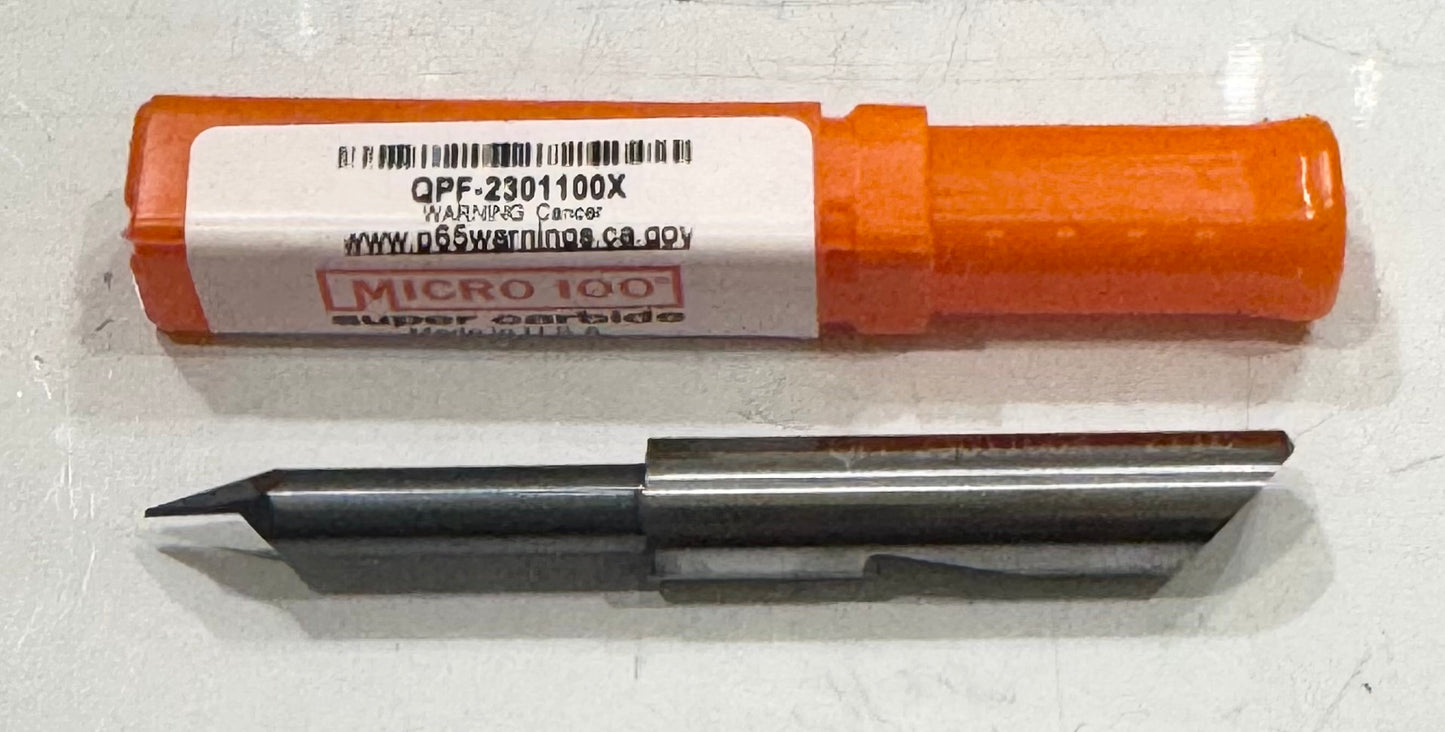

Micro 100 .2300" Min Bore Quik Boring & Profiling Tool, 2-1/2" OAL, AlTiN

PRODUCT DESCRIPTION

Description	Tool; 5/16" Shank Dia. x 0.16" CW x 1.1" Max Depth x 2-1/2" OAL x 0.008" Corner Radius ; Carbide ; Right Hand ; AlTiN
Body Material	Carbide
Brand	Micro 100
Coating	AlTiN
Connection Diameter Machine Side Dconms	5/16"
Corner Radius Re	0.008"
Cutting Depth Maximum CDX	1.1"
Cutting Direction Hand	Right-Hand
Cutting Edge Material	Carbide
Cutting Length	1.1"
Cutting Width CW	0.16"
Functional Length LF	2-1/2"
Head Length LH	1.1"
Measurement Type	Inch
Minimum Bore Diameter Dmin	1/4"
Overall Length Oal	2-1/2"
Tool Type	Boring and Profiling Tool
