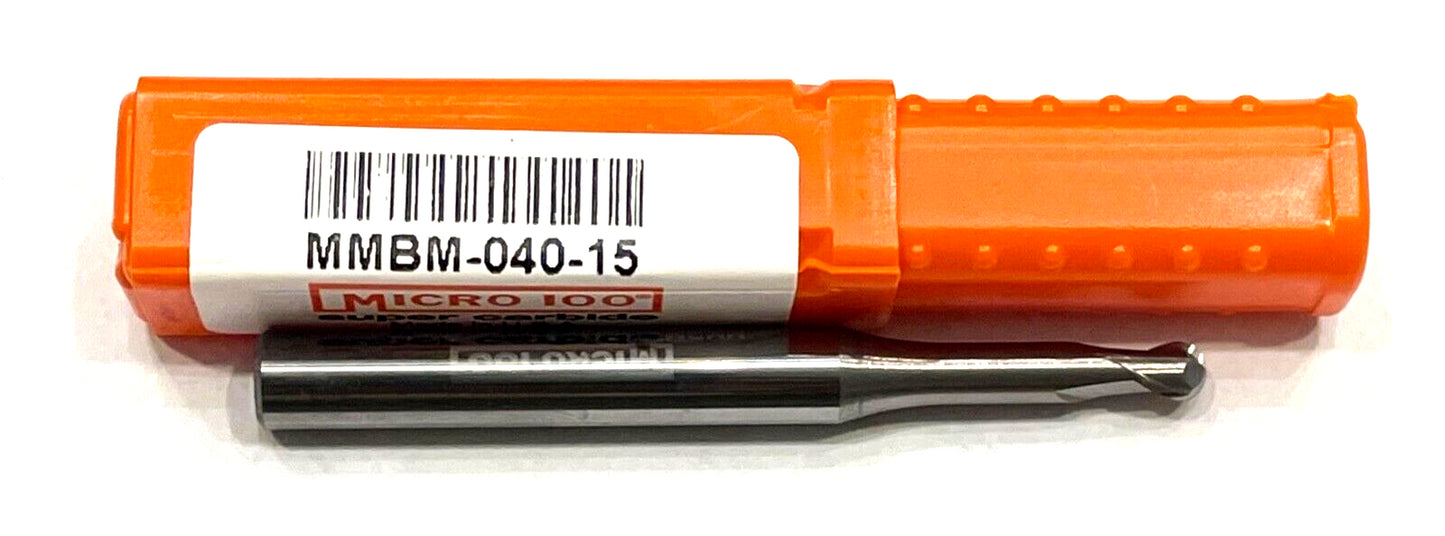

Micro 100 4mm Carbide Ball Nose End Mill Reduced Neck Mold Making 2 Flute USA
Micro 100 4mm Carbide Ball Nose End Mill Reduced Neck Mold Making 2 Flute USA
Regular price
$7.75 USD
Regular price
$0.00 USD
Sale price
$7.75 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
MICRO 100
USA MADE
SOLID CARBIDE BALL NOSE END MILL
| Cutting Diameter (DC) | 4 mm | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Flute Helix Angle (FHA) | CW |
| Depth of Cut Maximum (APMX) | 4 mm | Usable Length (LU) | 15 mm |
| Overall Length (OAL) | 57 mm | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | Uncoated | Decimal Equivalent | 0.1575″ |
