Low stock: 4 left

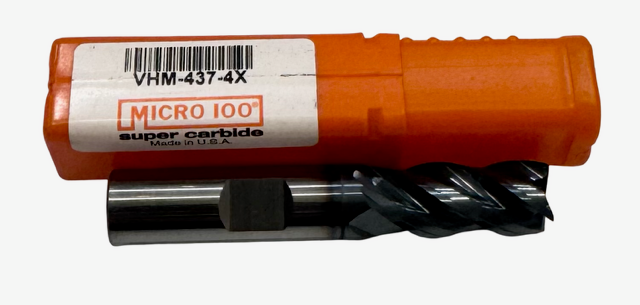

Micro 100 7/16" Carbide End Mill .020" Radius High Performance 4 Flute AlTiN

PRODUCT DESCRIPTION

Description	SQ End Mill; 7/16" Dia. x 1" LOC x 7/16" Shank Dia. x 2-1/2" OAL ; 4 FL ; Carbide ; AlTiN
Body Material	Carbide
Brand	Micro 100
Coating	AlTiN
Connection Diameter Machine Side Dconms	7/16"
Corner Radius Re	0.02"
Cutting Diameter DC	7/16"
Cutting Edge Material	Carbide
Decimal Equivalent	0.4375"
Depth Of Cut Maximum Apmx	1"
End Shape	Corner Radius
Flute Count Nof	4
Flute Helix Angle Fha	38 Degrees
Flute Type	Helical
Length Group	Variable Helix
Measurement Type	Inch
Overall Length Oal	2-1/2"
Shank Type	Weldon
Tool Type	Single-End|High Performance
Usable Length Lu	1"
