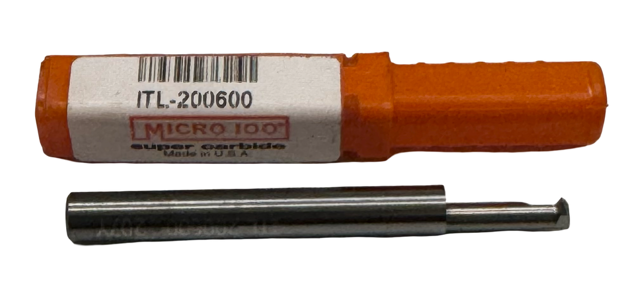

Micro 100 Solid Carbide Internal Threading Tool, .200" Min, 0.045" Projection, Left Hand USA
Micro 100 Solid Carbide Internal Threading Tool, .200" Min, 0.045" Projection, Left Hand USA
Regular price
$11.99 USD
Regular price
$0.00 USD
Sale price
$11.99 USD
Unit price
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 8 left
Couldn't load pickup availability
Micro 100 Solid Carbide Internal Threading Tool, .200" Min, 0.045" Projection LH
PRODUCT DESCRIPTION
| Body Material | Carbide |
|---|---|
| Brand | Micro 100 |
| Coating | Uncoated |
| Connection Diameter Machine Side Dconms | 1/4" |
| Cutting Direction Hand | Left Hand |
| Cutting Edge Material | Carbide |
| Cutting Length | 0.6" |
| Functional Width WF | 0.2" |
| Measurement Type | Inch |
| Minimum Bore Diameter Dmin | 0.222" |
| Overall Length Oal | 2-1/2" |
| Overhang Minimum Ohn | 0.045" |
| Thread Angle | 60 Degrees |
| Thread Standard | | ANSI | UN | Metric | |
| Threads Per Inch Maximum Tpix | 56 |
| Threads Per Inch Minimum Tpin | 13 |
| Tool Type | Internal Threading Tool |
