Michigan Wholesale Tool Supply

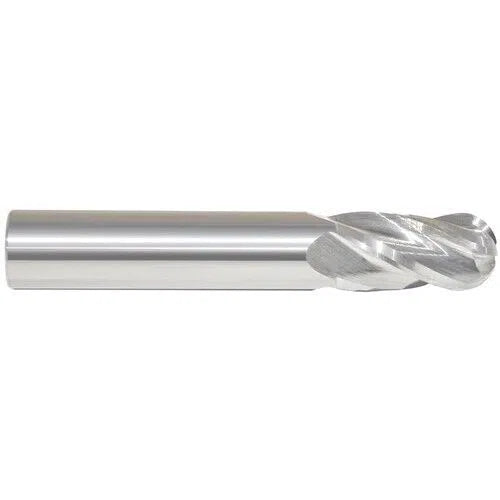

Mill Monster 27/64" Carbide Ball Nose End Mill 4 Flute 30° Helix USA 221-001098
Mill Monster 27/64" Carbide Ball Nose End Mill 4 Flute 30° Helix USA 221-001098
Regular price
$9.10 USD
Regular price
$0.00 USD
Sale price
$9.10 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 1 left
Couldn't load pickup availability
MILL MONSTER
USA MADE
SOLID CARBIDE BALL NOSE END MILL
| Cutting Diameter (DC) | 27/64″ | Application | | Profiling | Plunging | Profile Cutting | Radiusing | Radius Slotting | |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Grade | C-2 Sub-Micron |
| Depth of Cut Maximum (APMX) | 1″ | Length Group | Regular |
| Overall Length (OAL) | 2-3/4″ | End Shape | Ballnose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.4219″ |
| Coating | Bright | Series/List # | 221 |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Single / Double End | Single End |
