Michigan Wholesale Tool Supply

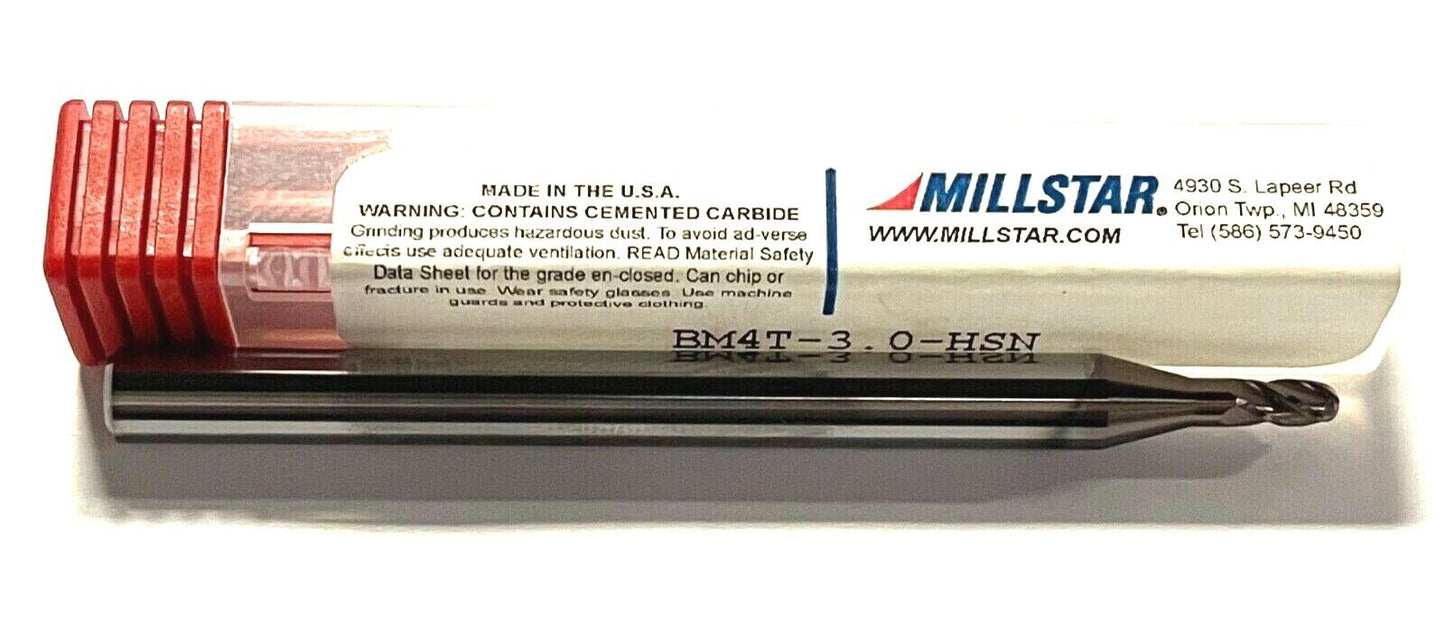

Millstar 3mm Carbide Ball End Mill HSN Finish 4 Flute USA Made

Millstar 3mm Carbide Ball End Mill HSN Finish 4 Flute USA Made

Regular price $7.64 USD
Regular price $0.00 USD Sale price $7.64 USD
Sale Sold out
Shipping calculated at checkout.

36 in stock

MILLSTAR

USA MADE

SOLID CARBIDE BALL NOSED END MILL

Features and Benefits

Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
HSN is a multi-layer hybrid nano coating that has very good heat resistance and high a hardness. The HSN coating is designed for use on heat treated materials up to 72 HRc.

Specs

Mill Diameter (mm) 3.00
Mill Diameter (Decimal Inch) 0.1181
Number of Flutes 4
Length of Cut (mm) 6.00
Length of Cut (Decimal Inch) 0.2362
Material Solid Carbide
Overall Length (mm) 75.00
Shank Diameter (mm) 6.00
Finish/Coating HSN
Single or Double End Single
Cutting Direction Right Hand
Flute Direction Right Hand
