Michigan Wholesale Tool Supply

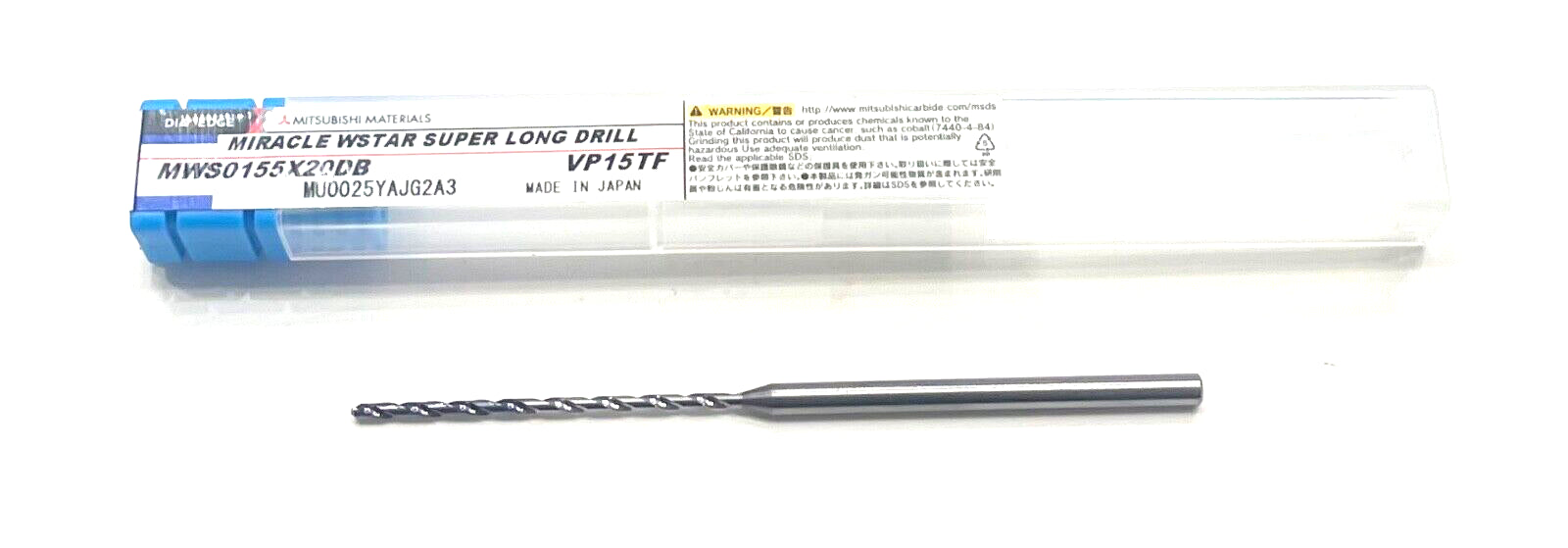

Mitsubishi 1.55mm Solid Carbide Drill 20xD Coolant Thru 2 Flute 135° Super Long
Mitsubishi 1.55mm Solid Carbide Drill 20xD Coolant Thru 2 Flute 135° Super Long
Regular price
$48.41 USD
Regular price
$0.00 USD
Sale price
$48.41 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
MITSUBISHI
SOLID CARBIDE SUPER LONG DRILL
| Drill Bit Size / Cutting Diameter (DC) | 1.55 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1.55 mm | Cutting Edge Material | Carbide |
| Length Group | 20xD | Grade | VP15TF |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Series/List # | MWS |
| Head Length (LH) | 38.3 mm | Usable Length (LU) | 31.3 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 36.3 mm |
| Point Angle (SIG) | 135 Degrees | Overall Length (OAL) | 78.3 mm |
| Point Length (PL) | 0.3 mm | Flute Count (NOF) | 2 |
| Functional Length (LF) | 78 mm | Feature | For high accuracy and efficient drilling of steels, carbon steels and difficult-to-cut materials. |
