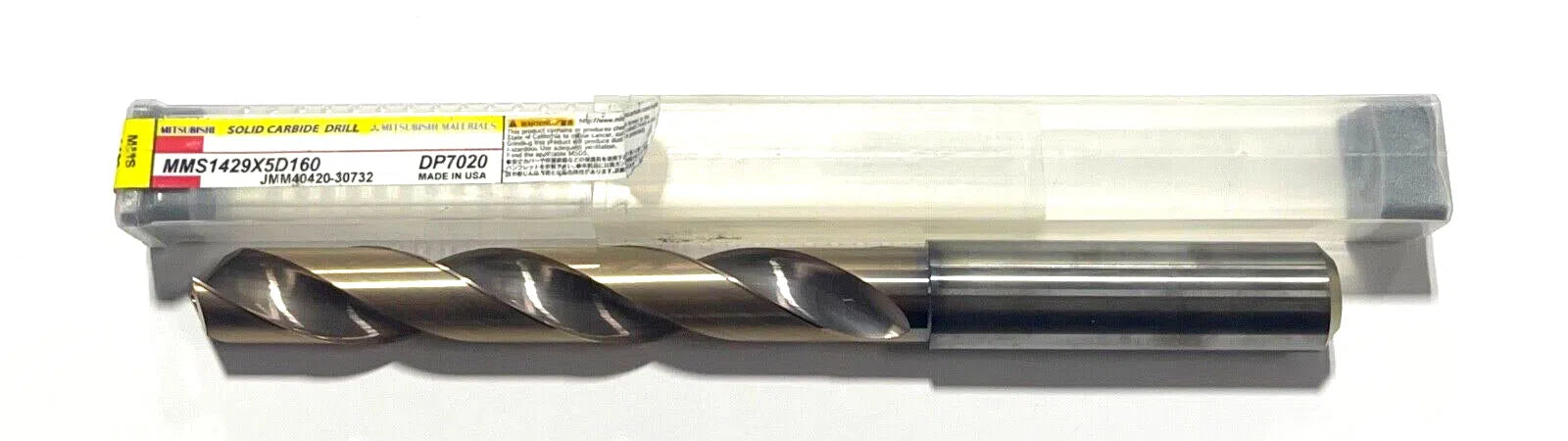

Mitsubishi 9/16" Solid Carbide Drill 5xD Coolant Thru DP7020 Grade 2 Flute USA
Mitsubishi 9/16" Solid Carbide Drill 5xD Coolant Thru DP7020 Grade 2 Flute USA
Regular price
$64.42 USD
Regular price
$0.00 USD
Sale price
$64.42 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 3 left
Couldn't load pickup availability
MITSUBISHI
USA MADE
SOLID CARBIDE DRILL 5XD
| Drill Bit Size / Cutting Diameter (DC) | 9/16″ | Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/16″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5625″ | Grade | DP7020 |
| Length Group | 5xD | Measurement Type | Inch |
| Applicable Material | | Cast Iron | | Series/List # | MMS_INCH |
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Usable Length (LU) | 2.915″ |
| Head Length (LH) | 4.276″ | Length Chip Flute (LCF) | 4.118″ |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 6.598″ |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Point Length (PL) | 0.102″ | Feature | New grade DP7020 and a unique margin, developed specifically for stainless steel, complement high flow coolant holes.,Long drill life and high efficiency drilling of holes in stainless steel. |
