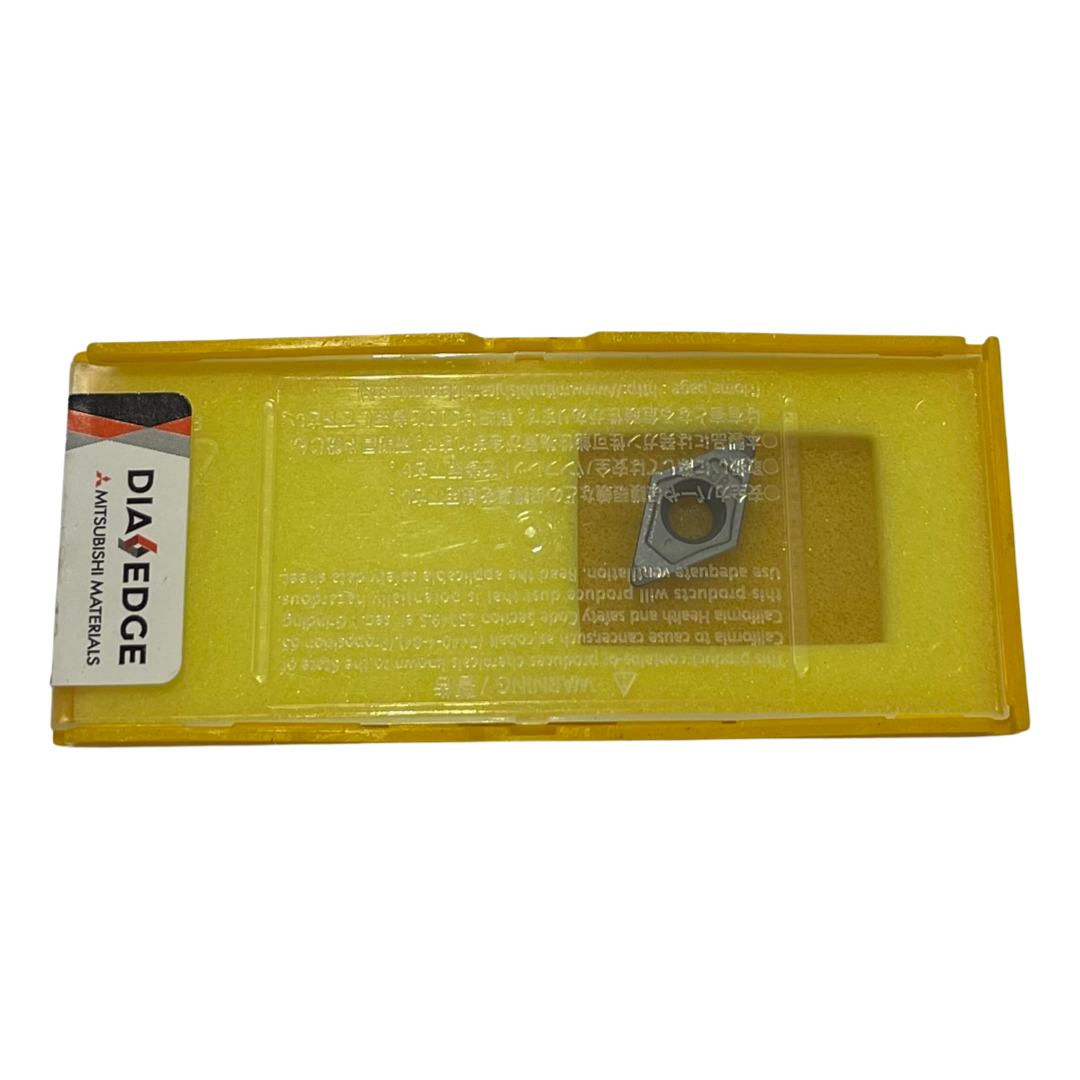

Mitsubishi CBN Insert DCGW 32.52 Grade MB8025 Turning Indexable Insert DIA EDGE

PRODUCT DESCRIPTION

MITSUBISHI

CBN TURNING INSERT

Applicable Material	| Hard Materials |	Tool Type	Turning Insert
Application	| Finish Cutting |	Fixing Hole Diameter (D1)	4.4 mm
Insert Style	DCGW	Clearance Angle Major (AN)	7 Degrees
Corner Radius (RE)	0.8 mm	Cutting Direction (HAND)	Neutral
Insert Size	32.52	Chip Breaker Type	flat_top
Insert Thickness (S)	3.97 mm	Quantity	1
Inscribed Circle Diameter (IC)	9.525 mm	Measurement Type	Metric
Insert Included Angle (EPSR)	55 Degrees	Shape	55° Rhombic
Cutting Edge Material	CBN	Series/List #	NP-DCGW32.52-GS2
Grade	MB8025	Cutting Edge Effective Length (LE)	2 mm
