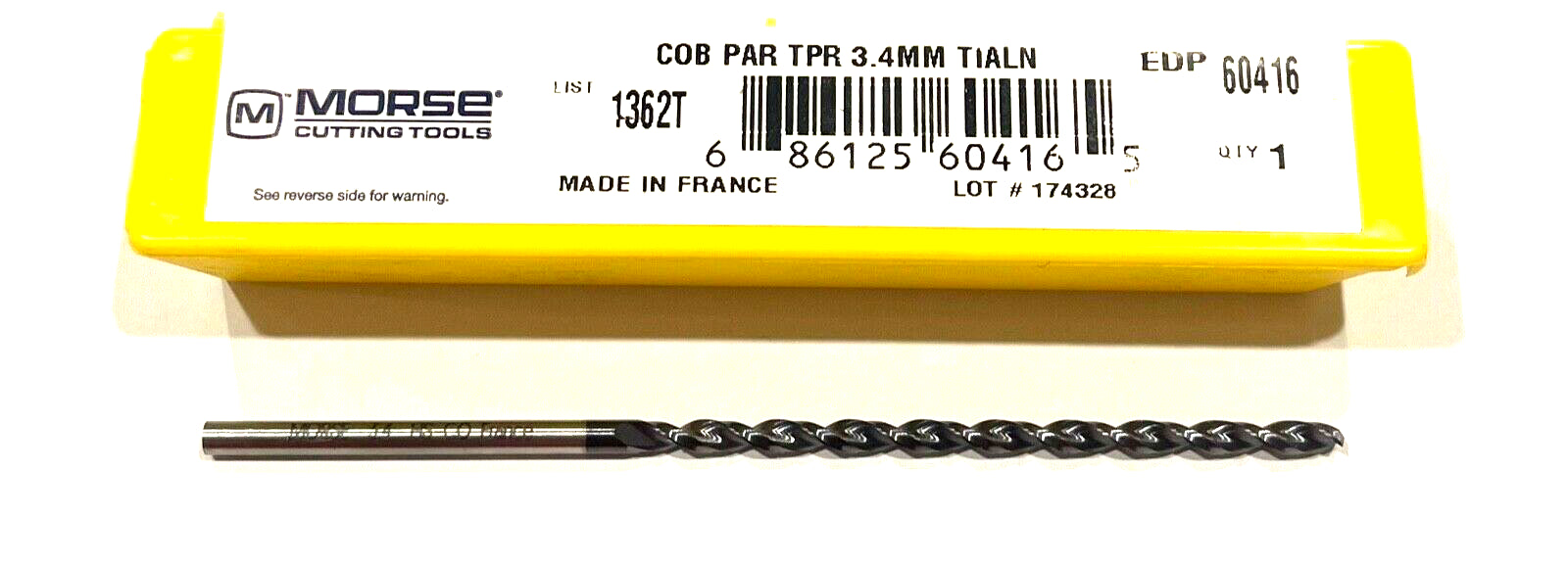

Morse 3.4mm Cobalt Drill Bit 7xD TiAlN Coated Taper Length Drill Parabolic Flute
Morse 3.4mm Cobalt Drill Bit 7xD TiAlN Coated Taper Length Drill Parabolic Flute
Regular price
$4.99 USD
Regular price
$0.00 USD
Sale price
$4.99 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
36 in stock
Couldn't load pickup availability
Morse 3.4mm Cobalt Drill Bit 7xD TiAlN Coated Taper Length Drill Parabolic Flute
PRODUCT DESCRIPTION
MORSE CUTTING TOOLS
COBALT TAPER LENGTH DRILL
| Drill Bit Size / Cutting Diameter (DC) | 3.4 mm | Flute Length | 73 mm |
| Decimal Equivalent | 0.1339 | Flute Type | Regular Spiral |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.4 mm | Measurement Type | Metric |
| Coating | TiALN | Overall Length (OAL) | 112 mm |
| Coolant Supply Property (CSP) | External | Point Shape | Self-Centering |
| Cutting Depth | 73 mm | Shank Type | Straight |
| Shank Size (SS) | 3.4 mm | Tool Type | 7 X Diameter |
| L to D Ratio | 7xD | Series/List # | 1362 |
| Cutting Edge Material | Cobalt M35 |
Product Features
Remarks
• Taper Length HPC Cobalt High Performance Wide Land Parabolic Flute Drills• Wide Land Parabolic Flute Drills• The next generation in parabolic flute design, are effective in a wider range of materials and applications than standard parabolic flute drills• An Enhanced Flute Design with reinforced web provides increased drill strength and rigidity, straighter closer tolerance holes, improved chip formation and evacuation, improved coolant flow to the drill point and higher speeds and feeds for increased productivity• Titanium Aluminum Nitride Coating (TiALN)• Recommended for high thermal stress applications including dry machining, abrasive materials and hard-to-machine materials which generate higher cutting temperatures• TiALN actually forms a hard aluminum oxide layer in hot dry machining applications which reflects heat back into the chip and away from the tool while allowing higher speeds and feeds• High productivity with increased tool life• Longer flute length and longer overall length for increased reach and deeper hole drilling
