Michigan Wholesale Tool Supply

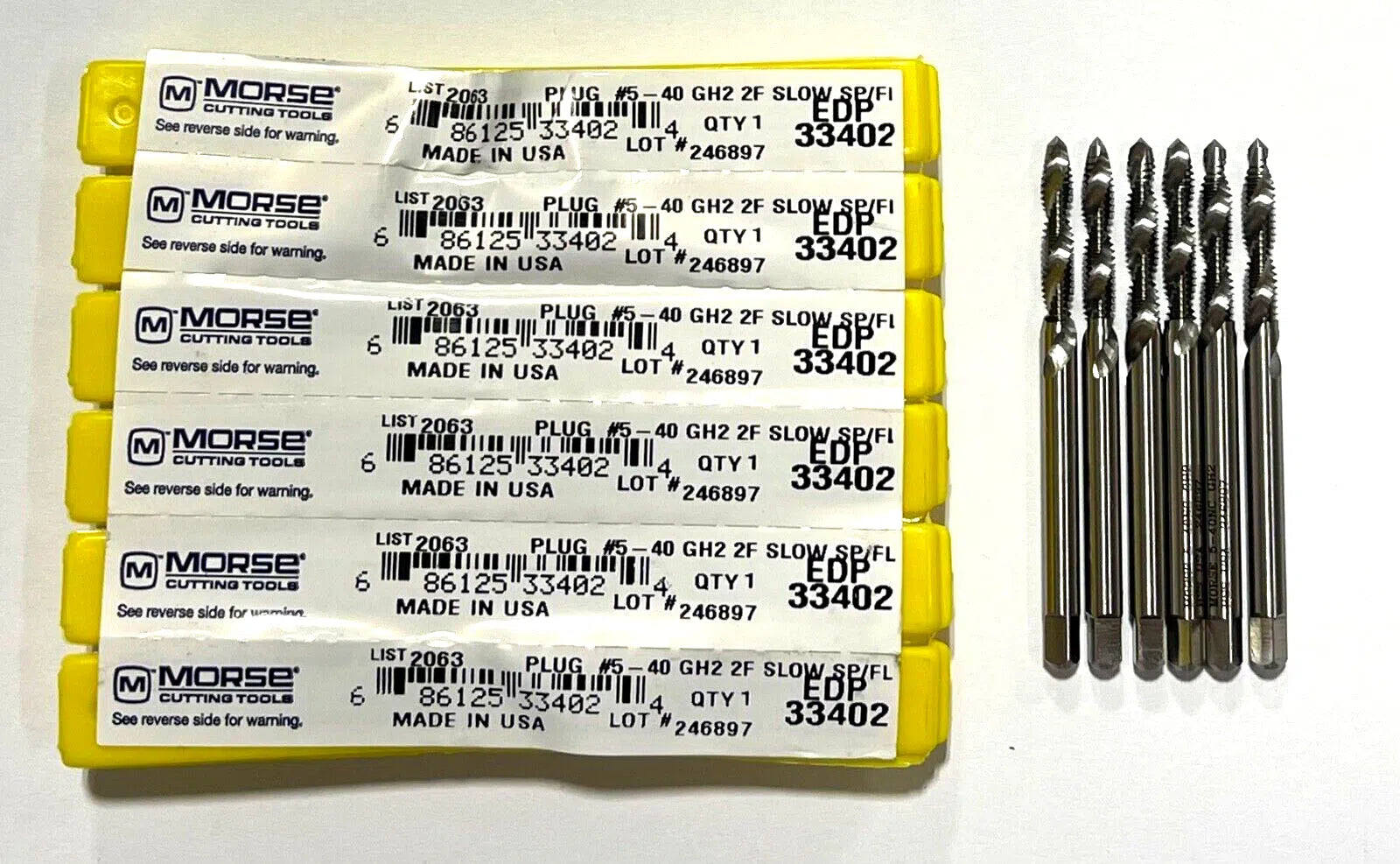

Morse 5-40 Tap HSS Spiral Flute Plug Taps 2 Flute GH2 Slow Spiral 6 Pack USA
Morse 5-40 Tap HSS Spiral Flute Plug Taps 2 Flute GH2 Slow Spiral 6 Pack USA
Regular price
$14.92 USD
Regular price
$0.00 USD
Sale price
$14.92 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
12 in stock
Couldn't load pickup availability
MORSE CUTTING TOOLS
USA MADE
HIGH SPEED STEEL SPIRAL FLUTE TAPS
6 PACK
| Thread Diameter Size (TDZ) | #5 | Thread Tolerance Class (TCTR) | | H3 | |
| Threads per Inch (TPI) | 40 | Chamfer | Plug |
| Overall Length (OAL) | 1-15/16″ | Coating | Bright |
| Thread Cutting Part Length (THL) | 5/8″ | Flute Type | Spiral |
| Flute Count (NOF) | 2 | Style | Plug |
| Flute Helix Angle (FHA) | 52 Degrees | Measurement Type | Machine Screw |
| Cutting Edge Material | HSS | Series/List # | 2063 |
Product Features
Remarks
• Spiral Flute taps lift the chips out of the hole in blind hole tapping, eliminating chip disposal problems, damaged threads and broken taps. They will also bridge interruptions in the tapped hole.• Slow Spiral taps have stronger cutting edge (less susceptible to chpping) than Fast Spiral taps and are recommended for general purpose applications.
