Michigan Wholesale Tool Supply

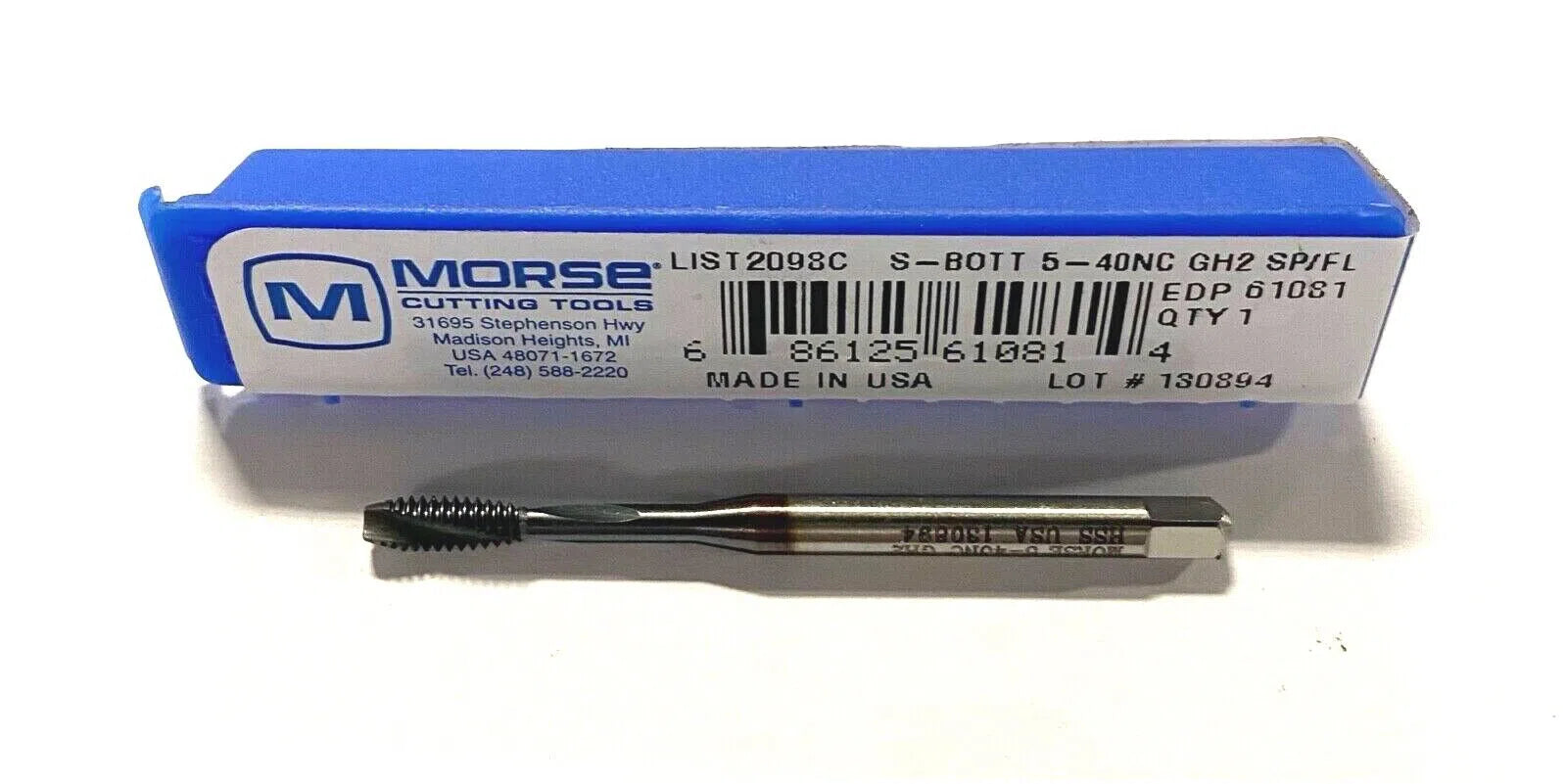

Morse 5-40NC Semi Bottoming Tap TiCN Coated High Performance Spiral Flute
Morse 5-40NC Semi Bottoming Tap TiCN Coated High Performance Spiral Flute
Regular price
$4.36 USD
Regular price
$0.00 USD
Sale price
$4.36 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
18 in stock
Couldn't load pickup availability
MORSE CUTTING TOOLS
USA MADE
HIGH PERFORMANCE SEMI BOTTOMING TAPS
| Thread Diameter Size (TDZ) | #5 | Tool Type | High Performance Tap |
| Threads per Inch (TPI) | 40 | Chamfer | Semi-Bottoming |
| Overall Length (OAL) | 1-7/8″ | Coating | TiCN |
| Thread Cutting Part Length (THL) | 15/64″ | Flute Type | Spiral |
| Flute Count (NOF) | 2 | Style | Semi-Bottoming |
| Flute Helix Angle (FHA) | 17 Degrees | Measurement Type | Machine Screw |
| Applicable Material | Hard Materials - Steel Alloys | Titanium Alloys | Nickel Base High Temp Alloys | Tool and Mold Steels | and Stainless Steel up to 32Rc - 45Rc | Series/List # | 2098C |
| Cutting Edge Material | HSSPM | Thread Size | #5-40 |
| Thread Tolerance Class (TCTR) | H2 |
