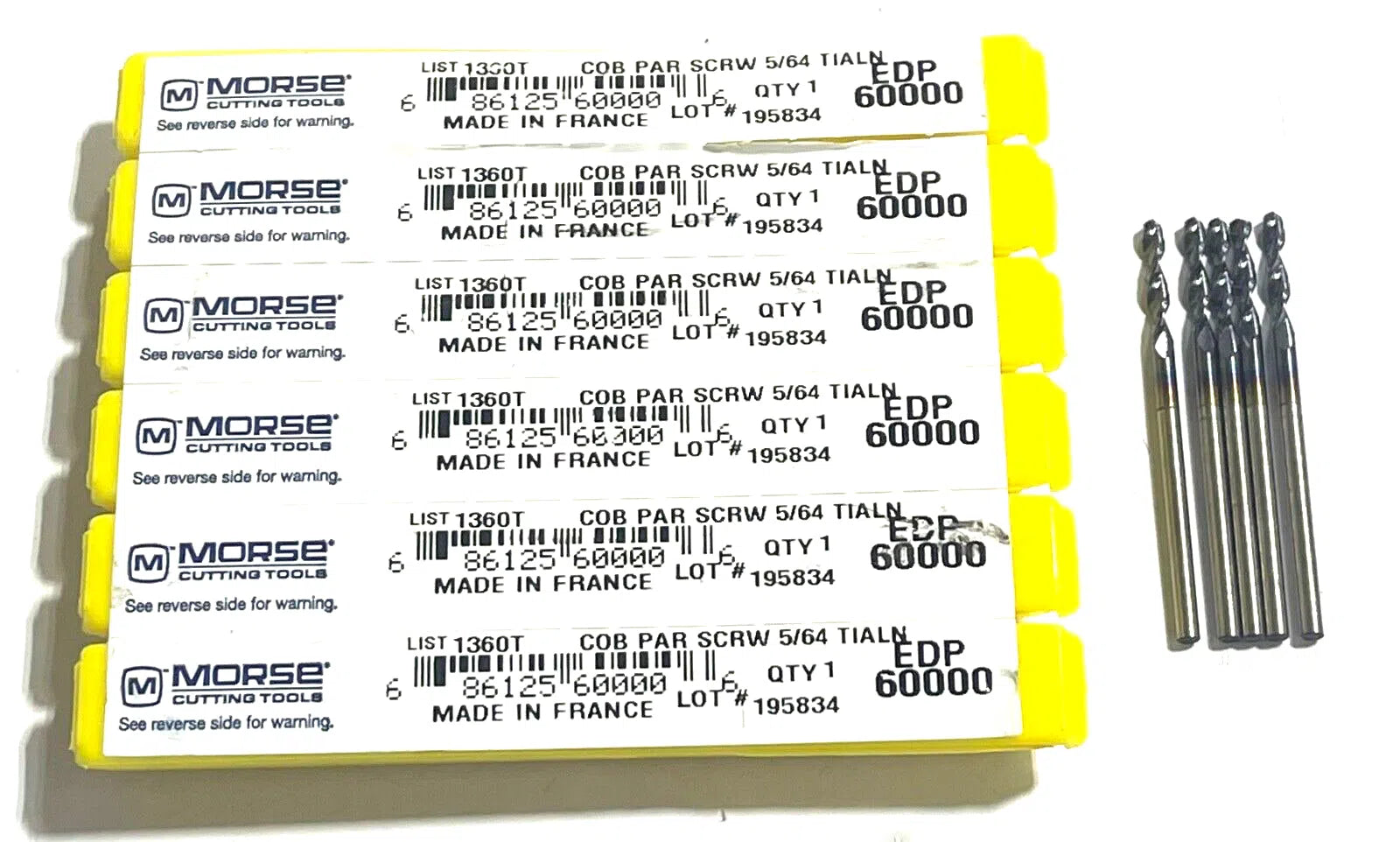

Morse 5/64" High Performance Screw Machine Drill TiAlN Parabolic Flute 130° 6PK
Morse 5/64" High Performance Screw Machine Drill TiAlN Parabolic Flute 130° 6PK
Regular price
$9.46 USD
Regular price
$0.00 USD
Sale price
$9.46 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 3 left
Couldn't load pickup availability
MORSE CUTTING TOOLS
HIGH PERFORMANCE SCREW MACHINE LENGTH DRILLS
6 PACK
Measurement Type | Inch | Cutting Edge Material | Cobalt M35 |
Drill Bit Size / Cutting Diameter (DC) | 5/64″ | Flute Length | 12 mm |
Drill Bit Size / Cutting Diameter (DC) - Inch | 5/64″ | Flute Type | Wide Land Parabolic |
Decimal Equivalent | 0.0781 | Overall Length (OAL) | 38 mm |
Angle | 130 Degrees | Shank Type | Straight |
Shape | Screw Machine | Style | HPC High Performance Drill |
Coating | TiAlN | Series/List # | 1360 |
Cutting Depth | 12 mm |
Product Features
Remarks
• Screw Machine Length HPC Cobalt High Performance Wide Land Parabolic Flute Drills• Wide Land Parabolic Flute Drills• The next generation in parabolic flute design, are effective in a wider range of materials and applications than standard parabolic flute drills• An Enhanced Flute Design with reinforced web provides increased drill strength and rigidity, straighter closer tolerance holes, improved chip formation and evacuation, improved coolant flow to the drill point and higher speeds and feeds for increased productivity• Titanium Aluminum Nitride Coating (TiALN)• Recommended for high thermal stress applications including dry machining, abrasive materials and hard-to-machine materials which generate higher cutting temperatures• TiALN actually forms a hard aluminum oxide layer in hot dry machining applications which reflects heat back into the chip and away from the tool while allowing higher speeds and feeds• High productivity with increased tool life• Short flute length and short overall length for maximum rigidity
