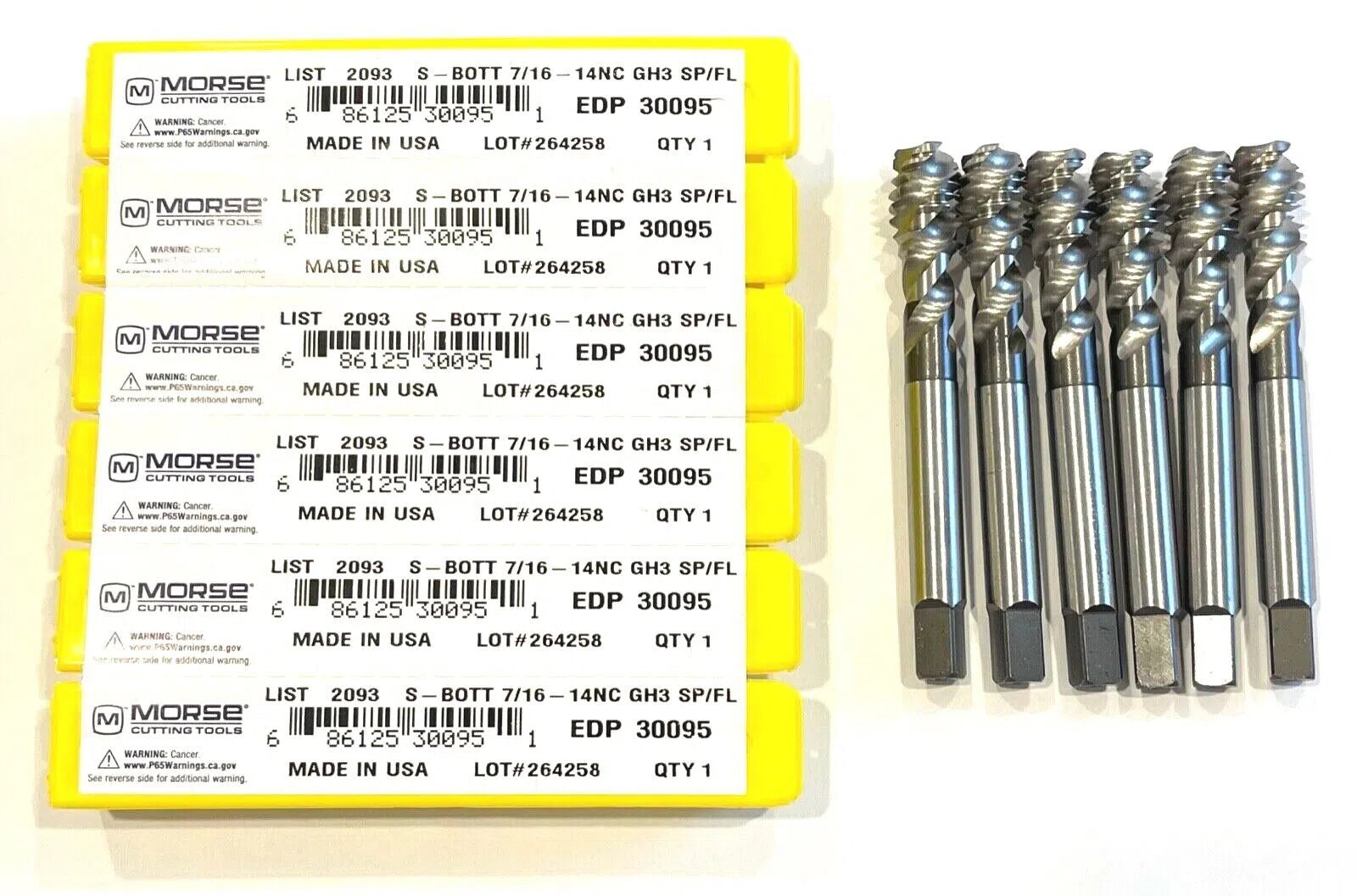

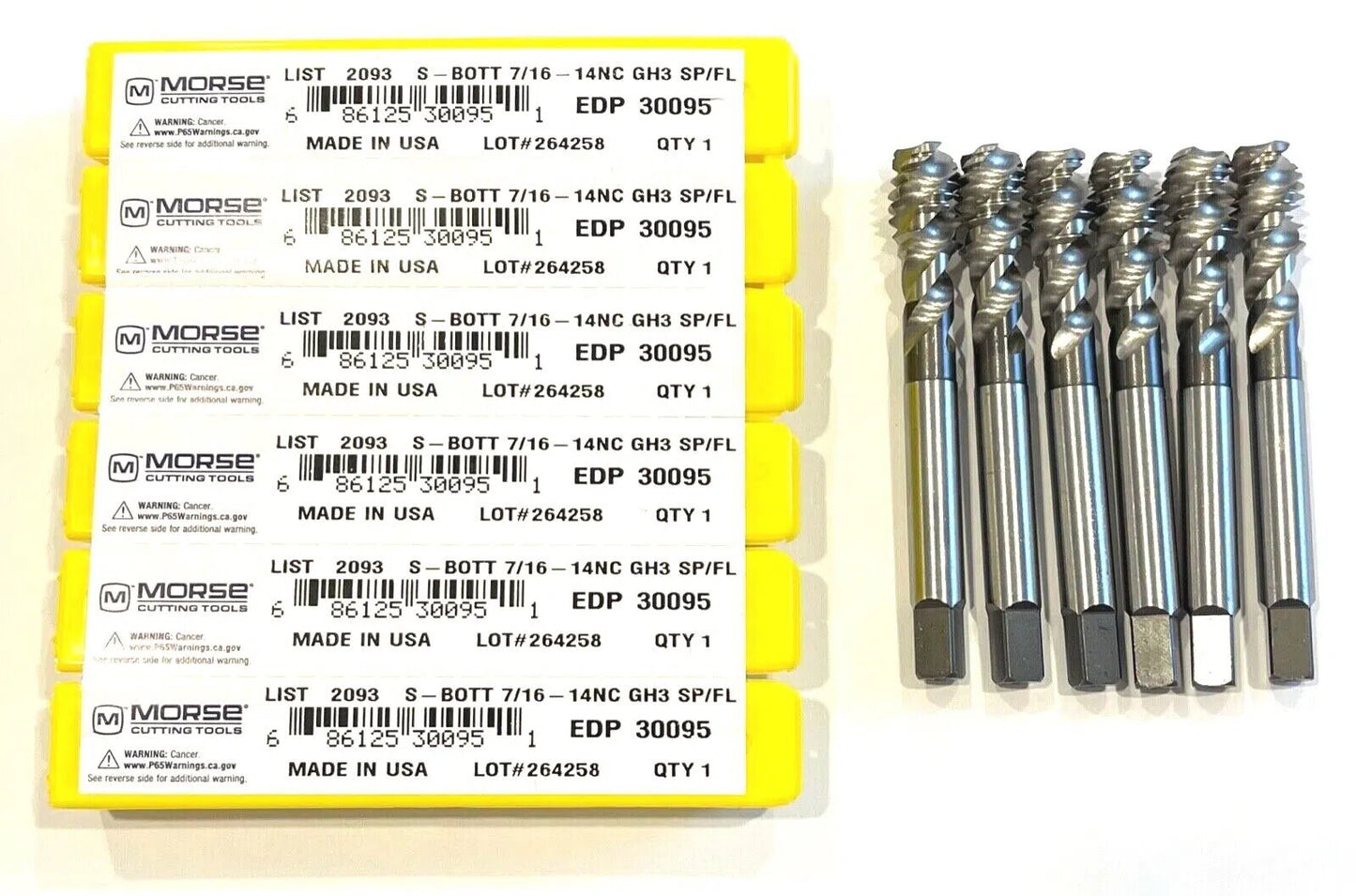

Morse 7/16-14 Tap HSSPM Semi Bott Spiral Flute Tap CrN Coating GH3 3FL 6pk 30095
Morse 7/16-14 Tap HSSPM Semi Bott Spiral Flute Tap CrN Coating GH3 3FL 6pk 30095
Regular price
$27.30 USD
Regular price
$0.00 USD
Sale price
$27.30 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 3 left
Couldn't load pickup availability
MORSE
USA MADE
HIGH PERFORMANCE SEMI BOTTOMING TAPS
6 PACK
| Thread Diameter Size (TDZ) | 7/16″ | Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 14 | Tool Type | High Performance Tap |
| Overall Length (OAL) | 3-5/32″ | Chamfer | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 19/32″ | Coating | Bright |
| Flute Count (NOF) | 3 | Flute Type | Spiral |
| Flute Helix Angle (FHA) | 45 Degrees | Style | Semi-Bottoming |
| Applicable Material | Aluminum / Non-Ferrous Materials | Measurement Type | Fractional |
| Cutting Edge Material | HSSPM |
Product Features
Remarks
• HPT†- High Performance Tap - Aluminum • Recommended for all types of aluminum alloys. CrN coating especially recommended for high-silicon aluminum alloys. • Spiral Flute Taps are designed to lift the chips out of the hole in blind hole tapping, eliminating chip evacuation problems which can result in damaged threads and broken taps. They will also bridge openings, keyways and other interruptions in the tapped hole.• Semi-Interrupted Thread (3-Flute taps only)• Semi-Bottoming Style (2-3 thread chamfer) allows threading close to the bottom of blind holes but cuts more efficiently than standard bottoming taps due to a slightly longer chamfer which distributes the cutting load over greater number of teeth.• CNC Reduced Neck Design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece.• P/M Powder Metallurgy High Speed Steel Premium Steel Engineered For:† Hardness / Wear Resistance / Tool / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity
