Michigan Wholesale Tool Supply

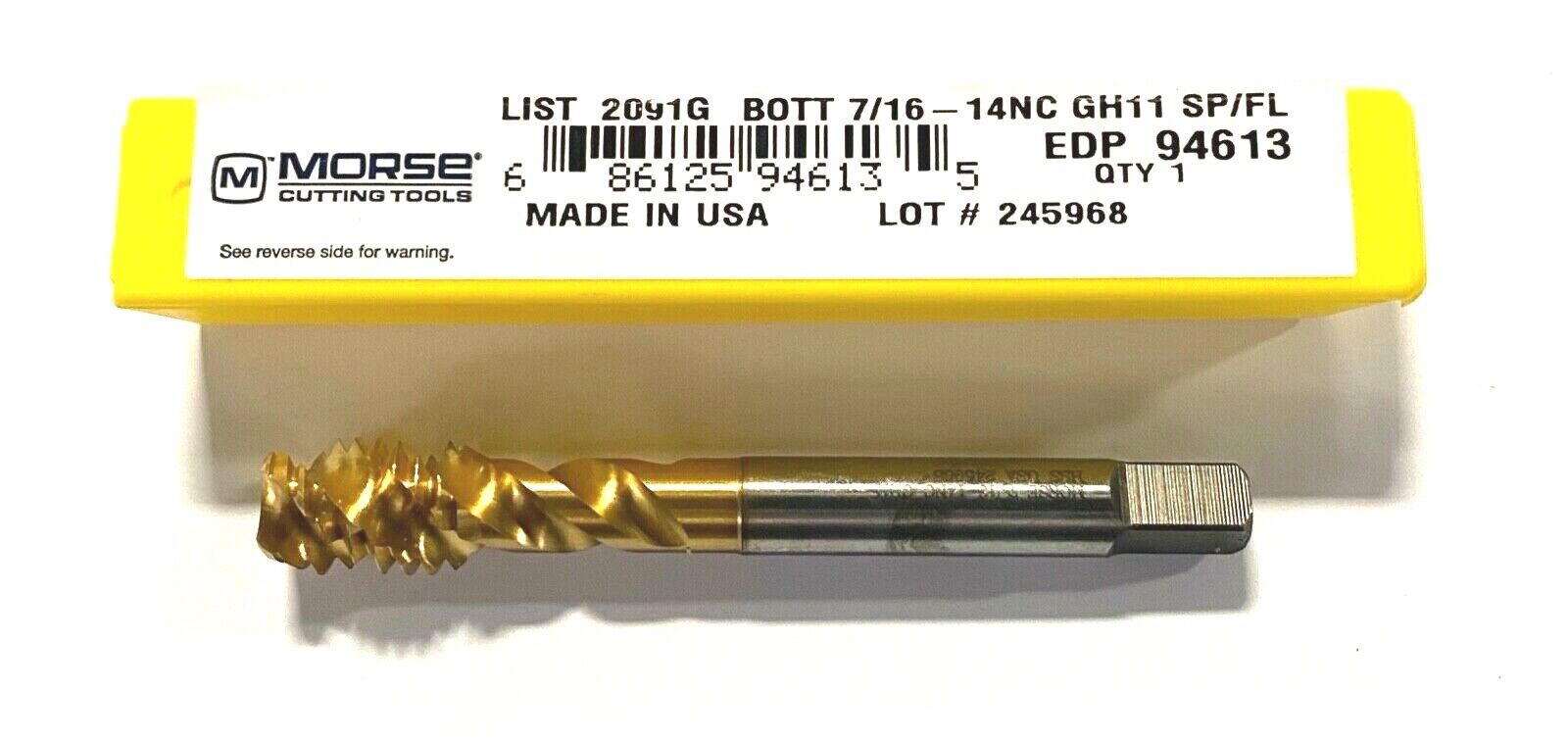

Morse 7/16-14NC Tap Semi Bottoming Spiral Flute Tin Coated +.005 Oversize USA
Morse 7/16-14NC Tap Semi Bottoming Spiral Flute Tin Coated +.005 Oversize USA
Regular price
$4.15 USD
Regular price
$0.00 USD
Sale price
$4.15 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
Low stock: 10 left
Couldn't load pickup availability
MORSE CUTTING TOOLS
USA MADE
SEMI BOTTOMING SPIRAL FLUTE TAP
| Thread Diameter Size (TDZ) | 7/16″ | Special Feature | ShearTap |
| Threads per Inch (TPI) | 14 | Tool Type | Production |
| Overall Length (OAL) | 3-5/32″ | Chamfer | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 0.591″ | Coating | TiN |
| Flute Count (NOF) | 3 | Flute Type | Spiral |
| Flute Helix Angle (FHA) | 48 Degrees | Style | Semi-Bottoming |
| Applicable Material | Long chipping steels and stainless steels up to 35 Rc hardness | Measurement Type | Fractional |
| Cutting Edge Material | HSS | Series/List # | 2091G |
| Thread Tolerance Class (TCTR) | H11 | Thread Size | 7/16″-14 |
