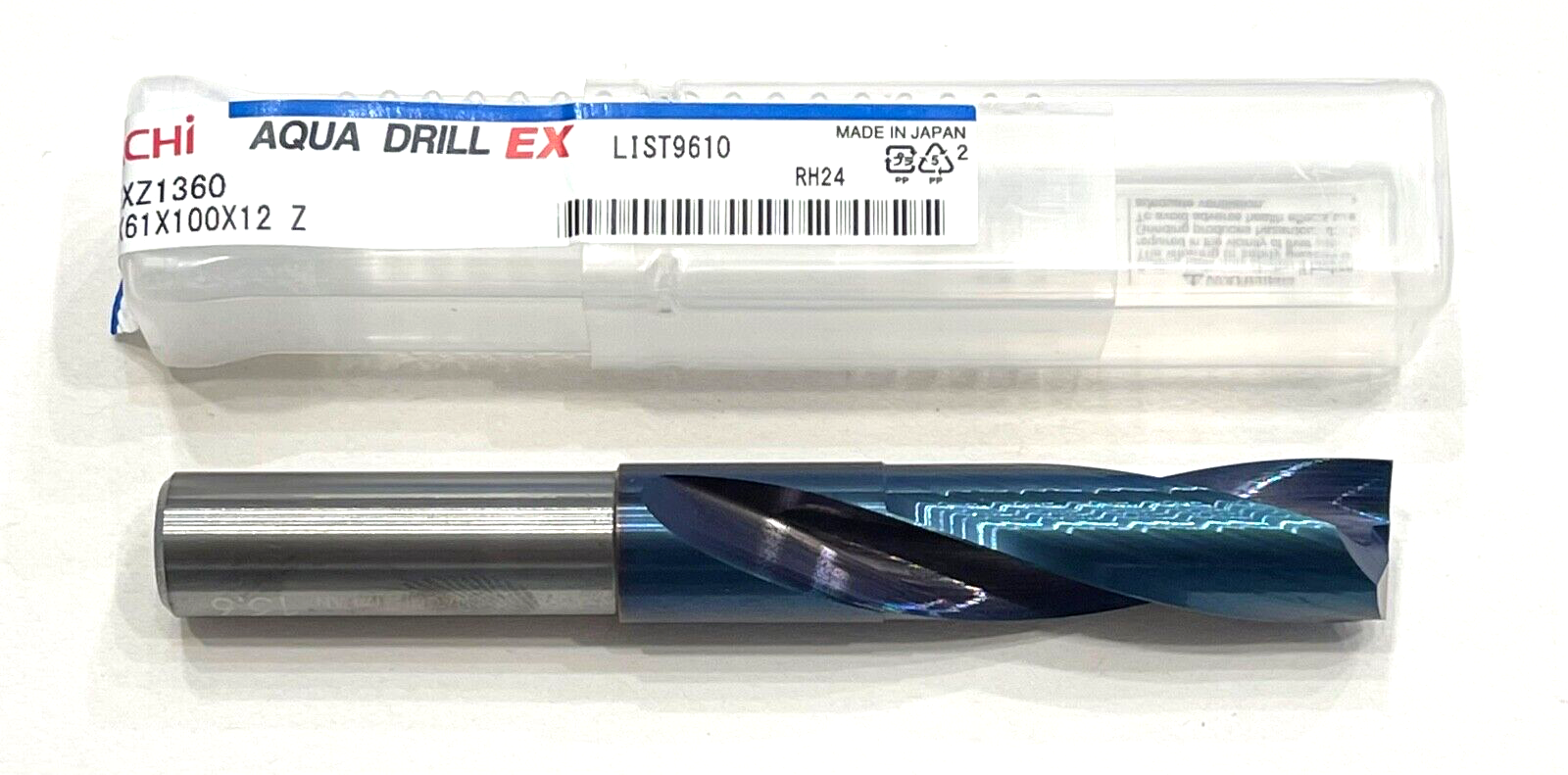

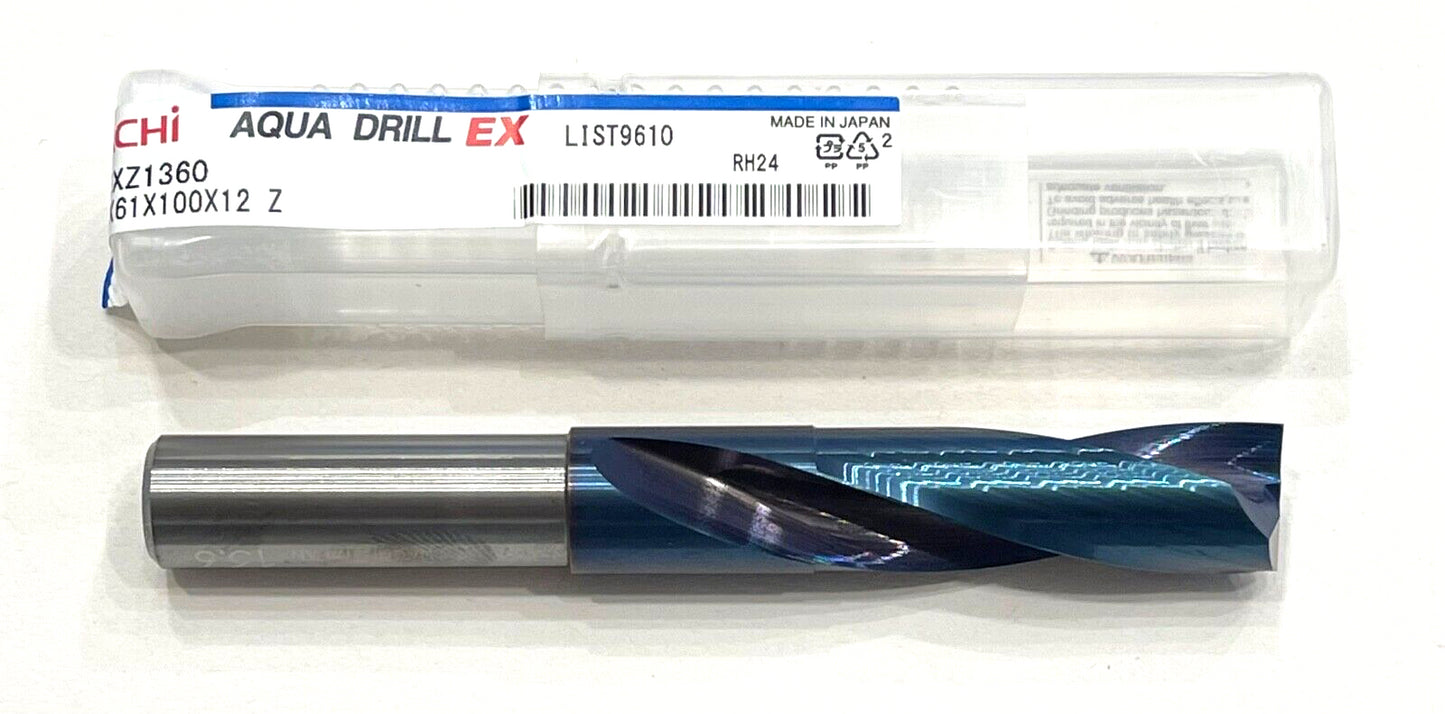

NACHI 13.6mm Solid Carbide Drill 2xD Aqua EX Coating 180° Made In Japan

PRODUCT DESCRIPTION

NACHI

SOLID CARBIDE DRILL

Drill Bit Size / Cutting Diameter (DC)	13.6 mm	Cutting Edge Material	Carbide
Decimal Equivalent	0.5354″	Tool Type	Drill
Drill Bit Size / Cutting Diameter (DC) - Metric	13.6 mm	Flute Type	Spiral
Length Group	2xD	Point Shape	Square End
Coating	Aqua EX	Measurement Type	Metric
Applicable Material	Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials	Series/List #	L9610
Connection Diameter Machine Side (DCONMS)	8.7 mm	Usable Length (LU)	63 mm
Coolant Supply Property (CSP)	External	Length Chip Flute (LCF)	61 mm
Point Angle (SIG)	180 Degrees	Overall Length (OAL)	100 mm
Flute Helix Angle (FHA)	20 Degrees	Flute Count (NOF)	2
Shank Type	Round	Cutting Direction (HAND)	Right Hand

Product Features

Remarks

Suitable for drilling in: Structural Steel, Carbon Steel, Pre-Hardened Steel, Alloy Steel, Hardened Steels, Mold Steels 40~50HRC Hardened Steel, 400 Series Stainless Steel, Cast Iron, Aluminum Alloys, Copper Alloys
