Michigan Wholesale Tool Supply

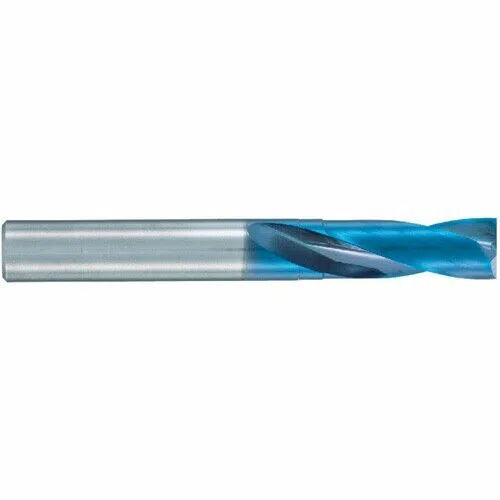

Nachi 14.6mm Solid Carbide Drill 2xD Aqua EX Coating 2 Flute 180°
Nachi 14.6mm Solid Carbide Drill 2xD Aqua EX Coating 2 Flute 180°
Regular price
$47.32 USD
Regular price
$0.00 USD
Sale price
$47.32 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
NACHI
SOLID CARBIDE DRILL
| Drill Bit Size / Cutting Diameter (DC) | 14.6 mm | Tool Type | Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 14.6 mm | Flute Type | Spiral |
| Length Group | 2xD | Point Shape | Square End |
| Coating | Aqua EX | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | | Series/List # | L9610 |
| Connection Diameter Machine Side (DCONMS) | 9.3 mm | Usable Length (LU) | 69 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 66 mm |
| Point Angle (SIG) | 180 Degrees | Overall Length (OAL) | 105 mm |
| Flute Helix Angle (FHA) | 20 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
