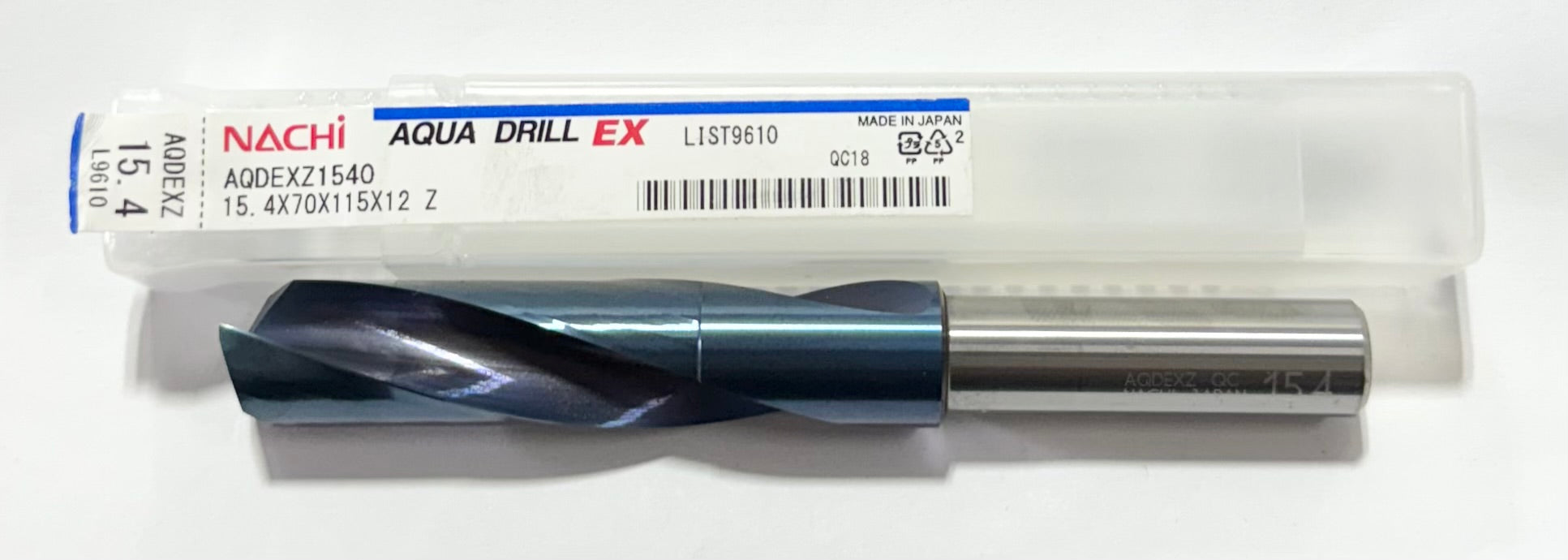

Nachi 15.4mm Solid Carbide Drill 2xD Aqua EX Coated 2 Flute 180 Degree

Nachi 15.4mm Solid Carbide Drill 2xD Aqua EX Coated 2 Flute 180 Degree

Regular price $107.99 USD
Regular price $0.00 USD Sale price $107.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 3 left



Nachi 15.4mm Solid Carbide Drill 2xD Aqua EX Coated 2 Flute 180 Degree

main image

PRODUCT DESCRIPTION

Drill Bit Size / Cutting Diameter (DC) 15.4 mm Cutting Edge Material Carbide
Decimal Equivalent 0.6063″ Tool Type Solid Carbide Drills
Drill Bit Size / Cutting Diameter (DC) - Metric 15.4 mm Flute Type Spiral
Length Group 2xD Point Shape Square End
Coating Aqua EX Measurement Type Metric
Applicable Material Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials Series/List # L9610
Connection Diameter Machine Side (DCONMS) 6.8 mm Usable Length (LU) 69 mm
Coolant Supply Property (CSP) External Length Chip Flute (LCF) 68 mm
Point Angle (SIG) 180 Degrees Overall Length (OAL) 105 mm
Flute Helix Angle (FHA) 20 Degrees Flute Count (NOF) 2
Shank Type Round Cutting Direction (HAND) Right Hand
