Nachi 9.7mm Solid Carbide Drill 2xD Aqua EX Coated 180 Deg Point
Nachi 9.7mm Solid Carbide Drill 2xD Aqua EX Coated 180 Deg Point
Regular price
$29.99 USD
Regular price
$0.00 USD
Sale price
$29.99 USD
Unit price
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 3 left
Couldn't load pickup availability

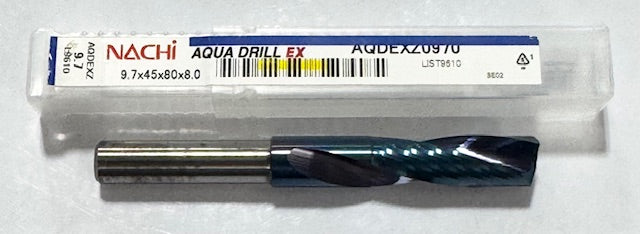

Nachi 9.7mm Solid Carbide Drill 2xD Aqua EX Coated 180 Deg Point
PRODUCT DESCRIPTION
| Description | SC Drill; 9.7 mm Dia. x 8 mm Shank Dia. x 80 mm OAL x 45 mm LCF ; 180 Degrees ; 2xD ; Spiral Flute ; Series L9610 |
|---|---|
| Brand | Nachi America Inc |
| Coating | Aqua EX |
| Connection Diameter Machine Side Dconms | 8 mm |
| Coolant Supply Property CSP | External |
| Cutting Direction Hand | Right-Hand |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3819" |
| Drill Bit Size Cutting Diameter DC | 9.7 mm |
| Drill Bit Size Cutting Diameter DC Metric | 9.7 mm |
| Flute Count Nof | 2 |
| Flute Helix Angle Fha | 20 Degrees |
| Flute Type | Spiral |
| Length Chip Flute LCF | 45 mm |
| Length Group | 2xD |
| Measurement Type | Metric |
| Overall Length Oal | 80 mm |
| Point Angle Sig | 180 Degrees |
| Point Shape | Square End |
| Serieslist | L9610 |
| Shank Type | Round |
| Tool Type | Drill |
| Usable Length Lu | 48 mm |
