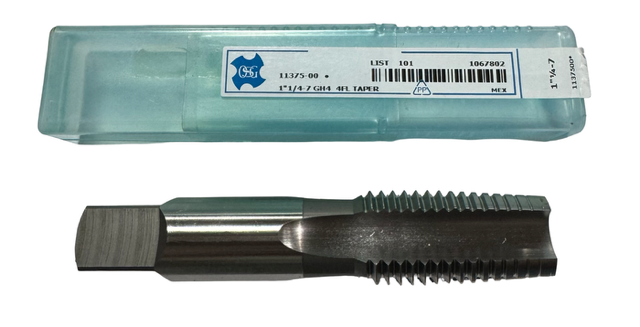

OSG 1-1/4"-7 HSS Straight Flute Tap 4 Flute GH4 Taper Tap

PRODUCT DESCRIPTION

Description	Straight Flute Tap; 1-1/4" - 7 ; 5-3/4" OAL ; 4 FL ; HSS ; Uncoated ; H4 ; Series 101
Brand	OSG
Chamfer	5P and up
Coating	Bright
Connection Diameter Machine Side Dconms	1.02"
Cutting Direction Hand	Right-Hand
Cutting Edge Material	HSS
End Shape	Chamfer
Flute Count Nof	4
Flute Type	Straight
Measurement Type	Inch
Overall Length Oal	5-3/4"
Serieslist	101
Thread Cutting Part Length THL	2-9/16"
Thread Diameter Size TDZ	1-1/4"
Thread Size	1-1/4" - 7
Thread Standard	NC
Thread Tolerance Class TCTR	H4
Threads Per Inch Tpi	7
Tool Type	General Purpose Tap
Trade Name	OSG GENERAL PURPOSE
Usable Length Lu	3"
