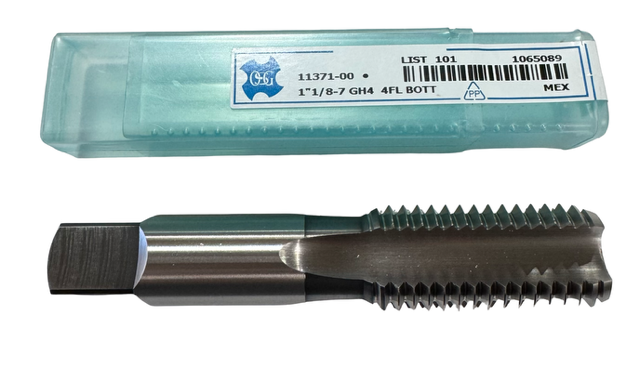

OSG 1-1/8"-7 HSS Hand Tap 4 Flute GH4 Bottoming Tap

PRODUCT DESCRIPTION

Thread Diameter Size (TDZ)	‎1-1/8″	Tool Type	General Purpose Tap
Threads per Inch (TPI)	7	Chamfer	‎1.5P-2P
Thread Standard	UNC	Coating	Uncoated
Overall Length (OAL)	‎5-7/16″	Flute Type	Straight
Thread Cutting Part Length (THL)	‎2-9/16″	End Shape	Chamfer
Usable Length (LU)	2.94″	Style	Bottoming
Connection Diameter Machine Side (DCONMS)	0.895″	Cutting Direction (HAND)	Right Hand
Flute Count (NOF)	4	Measurement Type	Inch
Applicable Material	| Steel | Cast Iron | Aluminum / Non-Ferrous Materials |	Series/List #	101
Cutting Edge Material	HSS	Thread Size	‎1-1/8″ - 7
Thread Tolerance Class (TCTR)	H4
