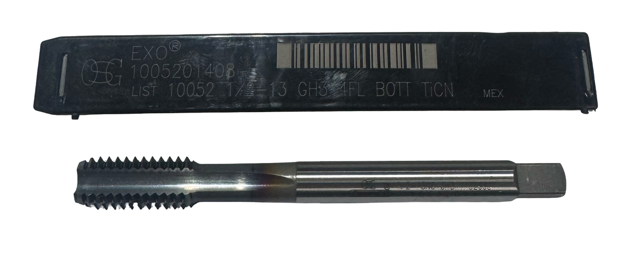

OSG 1/2"-13 NC HSS-PM Straight Flute Tap VC10 4FL GH3 TiCN Coated
OSG 1/2"-13 NC HSS-PM Straight Flute Tap VC10 4FL GH3 TiCN Coated
Regular price
$24.19 USD
Regular price
$0.00 USD
Sale price
$24.19 USD
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $25 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $25.
Quantity
Low stock: 1 left
Couldn't load pickup availability
OSG 1/2"-13 NC HSS-PM Straight Flute Tap VC10 4FL GH3 TiCN Coated
PRODUCT DESCRIPTION
| Description | Straight Flute Tap; 1/2" - 13 ; 110 mm OAL ; 4 FL ; HSS-PM ; TiCN ; H3 ; Series 10052 |
|---|---|
| Brand | OSG |
| Chamfer | 1.5P-2P |
| Coating | TiCN |
| Connection Diameter Machine Side Dconms | 0.367" |
| Cutting Edge Material | VC10 |
| End Shape | Chamfer |
| Flute Count Nof | 4 |
| Flute Type | Straight |
| Measurement Type | Inch |
| Overall Length Oal | 110 mm |
| Serieslist | 10052 |
| Special Feature | DIN Length |
| Thread Cutting Part Length THL | 1-21/32" |
| Thread Diameter Size TDZ | 1/2" |
| Thread Size | 1/2" - 13 |
| Thread Standard | NC |
| Thread Tolerance Class TCTR | H3 |
| Threads Per Inch Tpi | 13 |
| Tool Type | High Performance Tap |
| Trade Name | EXOTAP DC |
| Usable Length Lu | 1.933" |
