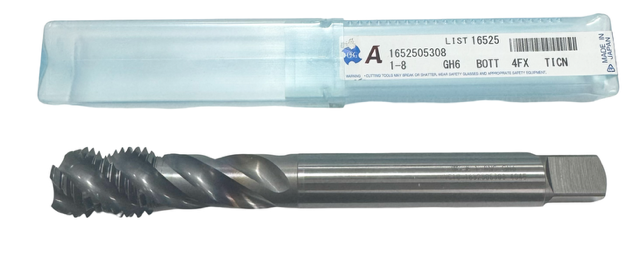

OSG 1"-8 Powdered Metal Spiral Flute Tap GH6 Modified Bottoming 4 Flute TiCN

PRODUCT DESCRIPTION

Thread Size (Inch)	1-8
Thread Standard	UNC
Chamfer	Modified Bottoming
Material	Powdered Metal
Thread Limit	H6

Class Of Fit	2B
Coating/Finish	TiCN
Thread Direction	Right Hand
Coolant Through	No
Number Of Flutes	4
Material Application	Cast Aluminum; High-Carbon Steel; Low-Carbon Steel; Alloy Steel; Aluminum; Stainless Steel; Cast Iron; Medium-Carbon Steel; Hardened Steel
Flute Direction	Right Hand
Helix Angle	45
Proprietary Coating/Finish	V
Oversize	No
Primary Workpiece Material	Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; Steel; Hardened Materials
Threads per Inch	8
Thread Length (Decimal Inch)	1.2520
Thread Length (mm)	31.80
Overall Length (Decimal Inch)	7.8740
Overall Length (mm)	200.00
