Low stock: 2 left

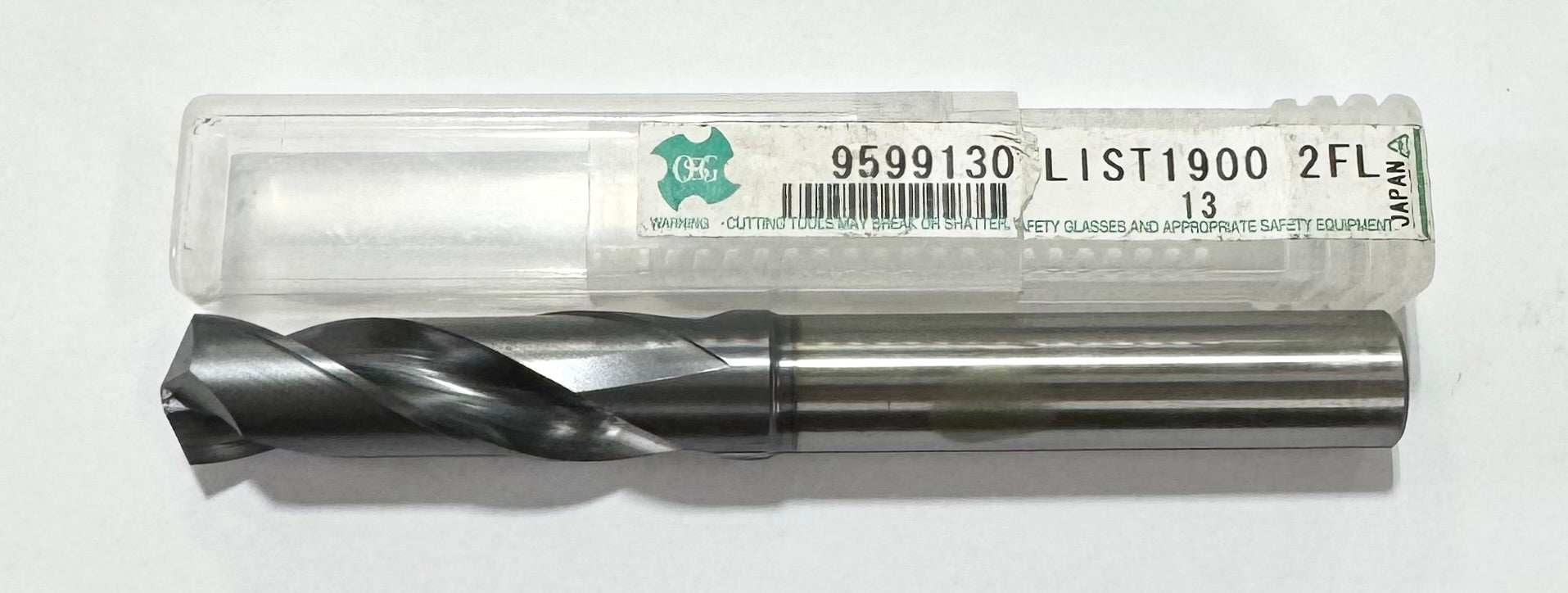

OSG 13mm XPM Screw Machine Drill 2 Flute V Coating High Performance

PRODUCT DESCRIPTION

Brand

OSG

Drill Bit Size

13.00 mm

Decimal Equivalent

0.5118

Measurement System

Metric

Material - Machining

Powdered Metal

Finish - Machining

V

Drill Bit Point Angle

130 °

Drill Bit Point Type

R Thinning Point

Flute Type

Spiral

Number of Flutes

2

Flute Length

51.00 mm

Cutting Direction

Right Hand

Shank Type - Machining

Straight

Shank Length

57.00 mm

Overall Length

108.00 mm

Depth:Dia. Ratio

3xD

Drill Length Class

Screw Machine Length

Coolant Fed

Non-Coolant Through

Standards

Not Rated

Drill Diameter Tolerance

+0.000/-0.027mm

Sheeter Drill

No

Web Thinning

R-Thinned

Material Grade - Machining

General Purpose

Primary Material Application

Cast Iron; Hardened Steel; Nickel; Steel; Tool and Die Steel

Primary Material Application ISO Code

H; K; P; S

Secondary Material Application

Aluminum; Hardened Steel; Low Carbon Steel; Stainless Steel; Titanium

Secondary Material Application ISO Code

H; M; N; P; S

Shank Diameter

12 mm
