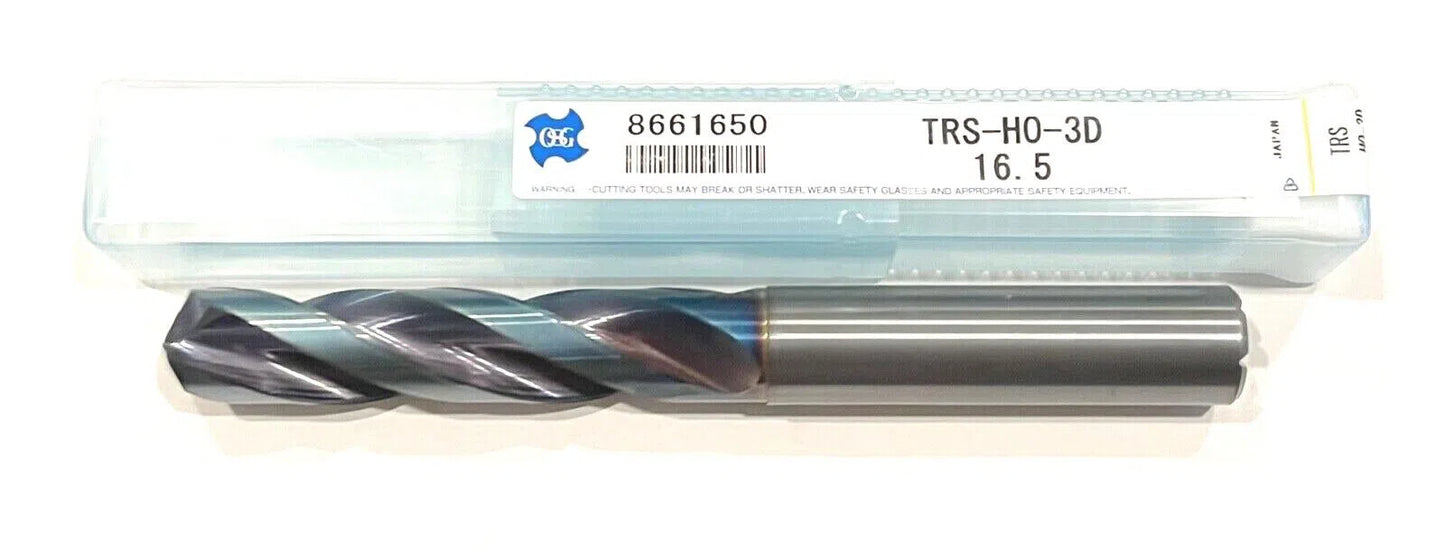

OSG 16.5mm Solid Carbide Screw Machine Drill WD1 Coating 140° 3 Flute 8661650
OSG 16.5mm Solid Carbide Screw Machine Drill WD1 Coating 140° 3 Flute 8661650
Regular price
$44.77 USD
Regular price
$0.00 USD
Sale price
$44.77 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 10 left
Couldn't load pickup availability
OSG
SOLID CARBIDE SCREW MACHINE DRILL
| Drill Bit Size (Decimal Inch) | 0.6496 |
| Drill Bit Size (mm) | 16.50 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | WD1 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 83.00 |
| Overall Length (mm) | 150.00 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Standard |
| Shank Diameter (mm) | 17.00 |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Number of Flutes | 3 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.027 |
| Drill Tip Finish/Coating | None |
| Web Thinning | R-Thinned |
| Series/List | 5600 |
| Length Type | Stub |
