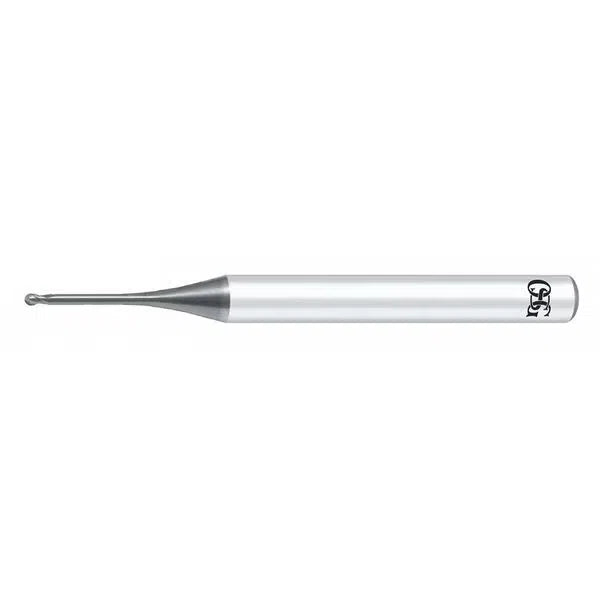

• OSG 1mm Carbide Ball Nose End Mill WXS Coating 2 Flute 0.5 Radius 3051003
1 1

Michigan Wholesale Tool Supply

OSG 1mm Carbide Ball Nose End Mill WXS Coating 2 Flute 0.5 Radius 3051003

OSG 1mm Carbide Ball Nose End Mill WXS Coating 2 Flute 0.5 Radius 3051003

$9.46 USD
$0.00 USD $9.46 USD
Sale Sold out
Shipping calculated at checkout.
Free Shipping: Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our Shipping Policy for more details.

Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.

No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.

Low stock: 3 left
OSG

SOLID CARBIDE BALL NOSE END MILL


Dimension Type Metric
Milling Diameter 1.00mm
Length of Cut 0.8 mm
Shank Dia. 4 mm
Neck Length 3.00 mm
Neck Dia. 0.95 mm
Overall Length 45 mm
Milling Dia. 1 mm

Details

End Mill Material Carbide
Number of Flutes 2
Single End/Double End Single End
End Mill Cutting Type Center Cutting
Grade General Purpose
Helix Angle 30 Degrees
Stainless (M) Compatibility Yes
Finish WXS
End Mill Application Roughing/Finishing
Cutting Direction Right Hand
Steel (P) Compatibility Yes
Super Alloy (S) Compatibility No
Shank Type Straight
End Mill Style Ball Nose
Cast Iron (K) Compatibility Yes
Item Ball End Mill
List Number 4590
Non Ferrous (N) Compatibility No
Hardened (H) Compatibility No
Series EXOCARB WXS
Primary Material Application Cast Iron, Hardened Steel, Steel, Tool and Die Steel
Material Grade - Machining General Purpose
Chip-Breaker No
Shank Type - Machining Straight
Finish - Machining WXS
Coolant Fed Non-Coolant Through
Drilling Tool Configuration Individual
Measurement System Metric
Material - Machining Carbide
Primary Material Application ISO Code H, K, P
View full details
