Michigan Wholesale Tool Supply

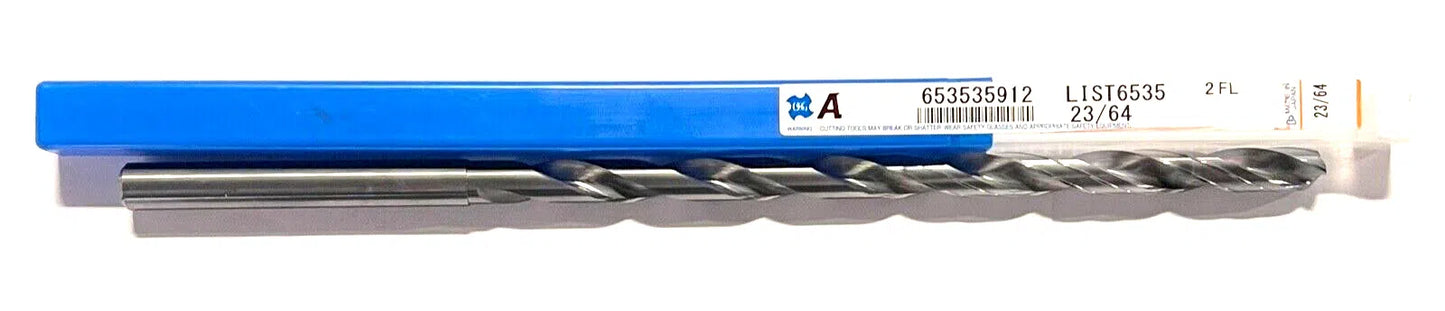

OSG 23/64" Solid Carbide Drill 15xD EgiAs Coated Coolant Thru 2 Flute 140° Drill
OSG 23/64" Solid Carbide Drill 15xD EgiAs Coated Coolant Thru 2 Flute 140° Drill
Regular price
$61.88 USD
Regular price
$0.00 USD
Sale price
$61.88 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
OSG
SOLID CARBIDE DRILL 15XD
| Drill Bit Size / Cutting Diameter (DC) | 23/64″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 23/64″ | Tool Type | Taper Drill |
| Decimal Equivalent | 0.3594″ | Measurement Type | Inch |
| Length Group | 15xD | Series/List # | 6535 |
| Coating | EgiAs | Usable Length (LU) | 170 mm |
| Applicable Material | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | Length Chip Flute (LCF) | 170 mm |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Overall Length (OAL) | 240 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 170 mm |
