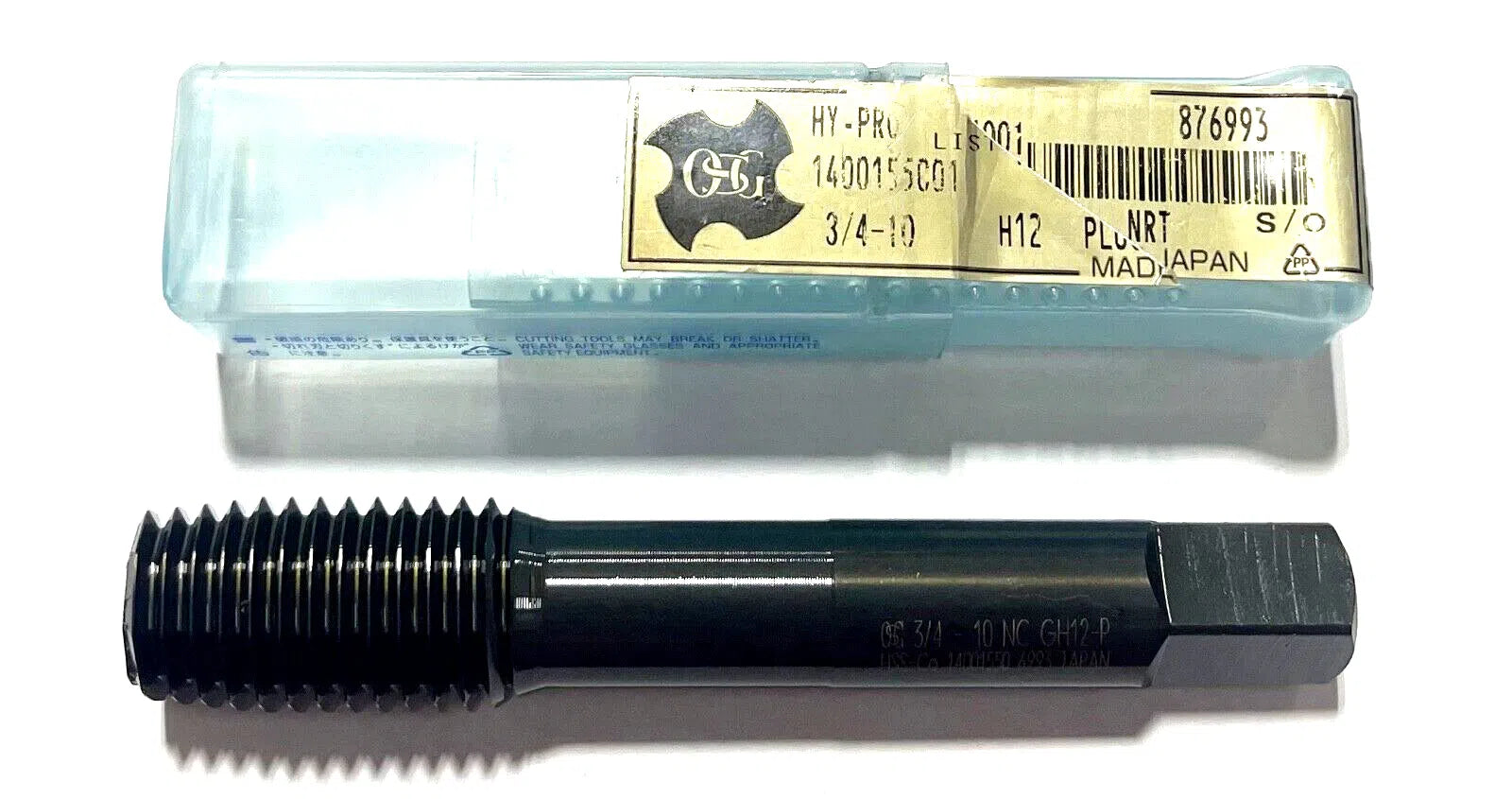

OSG 3/4-10 Cobalt Thread Forming Tap H12 Plug NRT S/O
OSG 3/4-10 Cobalt Thread Forming Tap H12 Plug NRT S/O
Regular price
$12.01 USD
Regular price
$0.00 USD
Sale price
$12.01 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
OSG
COBALT THREAD FORMING TAP
| Tool Type | | Forming Tap | | Coating | | Black Oxide | |
| Thread Diameter Size (TDZ) | 3/4″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 4-1/4″ | Threads per Inch (TPI) | 10 |
| Thread Cutting Part Length (THL) | 2″ | Chamfer | 4.5P |
| Usable Length (LU) | 2.433″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.59″ | End Shape | Chamfer |
| Flute Count (NOF) | 0 | Cutting Edge Material | HSSCo |
| Thread Tolerance Class (TCTR) | | H12 | | Series/List # | 14001 |
| Thread Standard | | UNC | | Thread Size | 3/4″ - 10 |
| Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | Hard Materials | |
