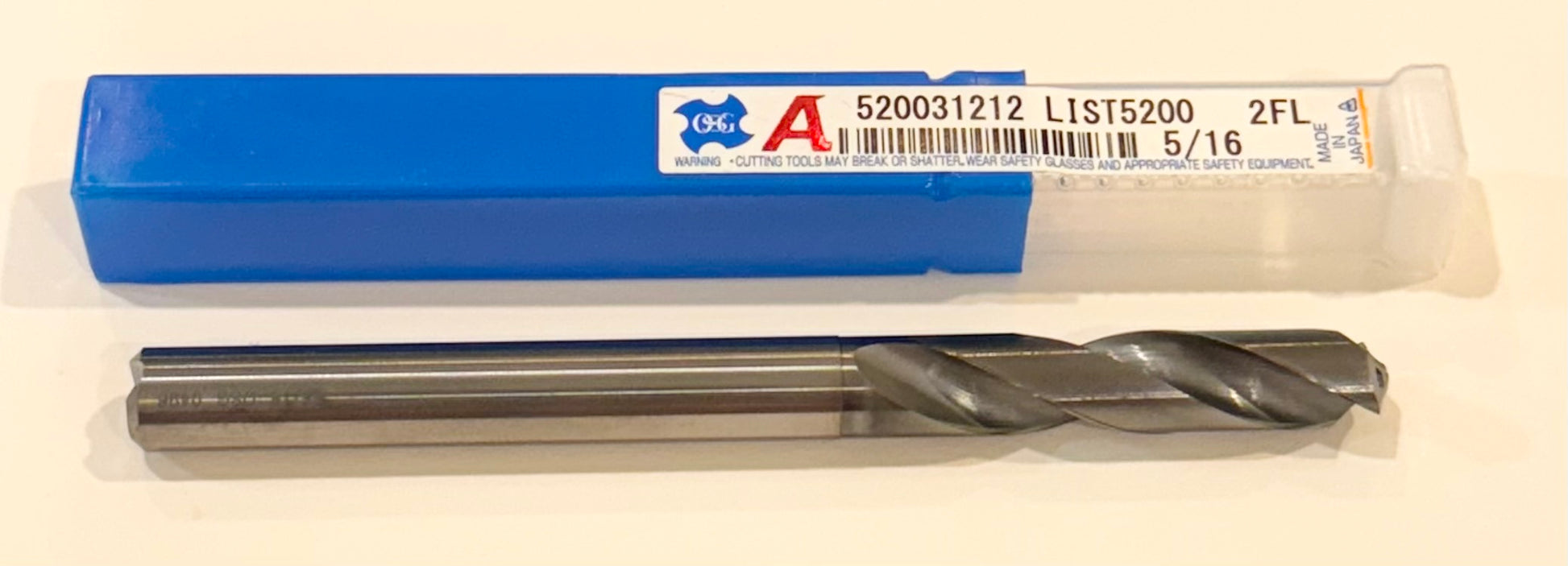

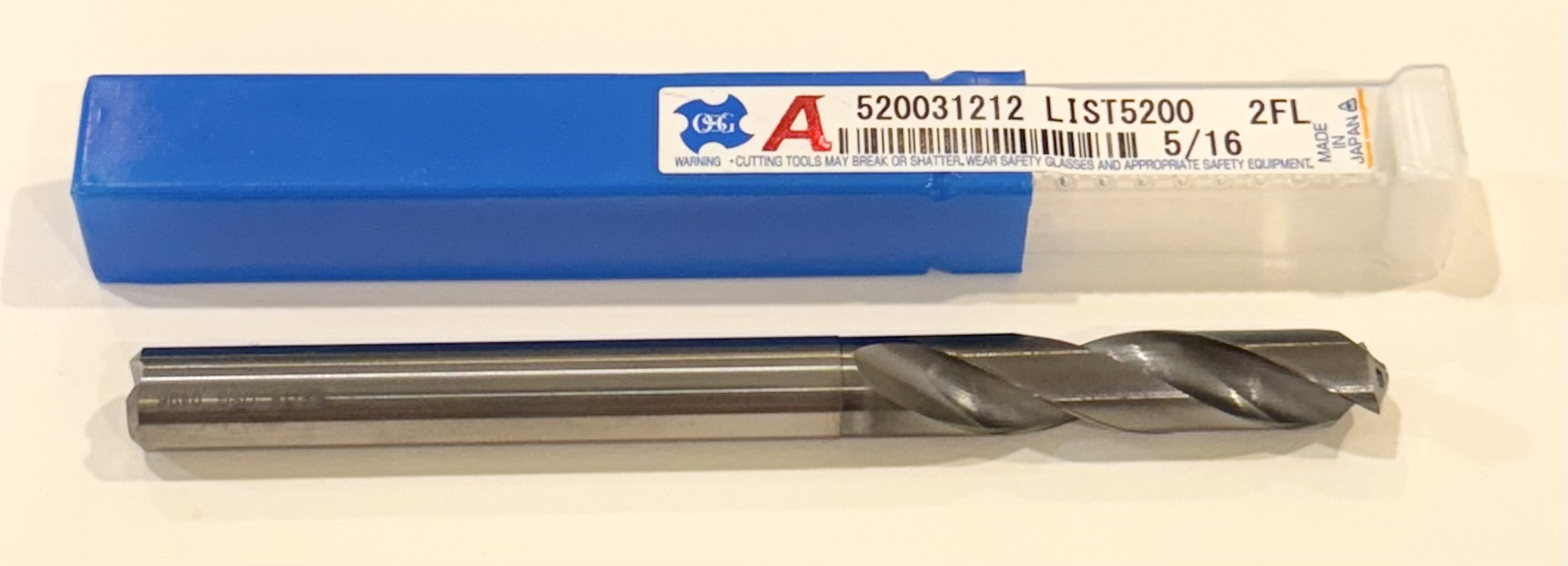

OSG 5/16" Solid Carbide Drill 3xD Coolant Thru 2 Flute WXL Coating 140 Deg
OSG 5/16" Solid Carbide Drill 3xD Coolant Thru 2 Flute WXL Coating 140 Deg
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 2 left
Couldn't load pickup availability
OSG 5/16" Solid Carbide Drill 3xD Coolant Thru 2 Flute WXL Coating 140 Deg
PRODUCT DESCRIPTION
Description Solid Carbide Drill; 5/16" Dia. x 5/16" Shank Dia. x 94 mm OAL x 40 mm LCF ; 140 Degrees ; 3xD ; 2 FL ; WXL ; Series 5200
Applicable Material Steel|Aluminum / Non-Ferrous Materials|Hard Materials
Brand OSG
Coating WXL
Connection Diameter Machine Side Dconms 5/16"
Coolant Supply Property CSP Coolant Thru
Cutting Direction Hand Right-Hand
Cutting Edge Material Carbide
Decimal Equivalent 0.3125"
Drill Bit Size Cutting Diameter DC 5/16"
Drill Bit Size Cutting Diameter DC Inch 5/16"
Flute Count Nof 2
Functional Length LF 40 mm
Length Chip Flute LCF 40 mm
Length Group 3xD
Measurement Type Inch
Overall Length Oal 94 mm
Point Angle Sig 140 Degrees
Serieslist 5200
Tool Type Stub Drill
Usable Length Lu 40 mm
