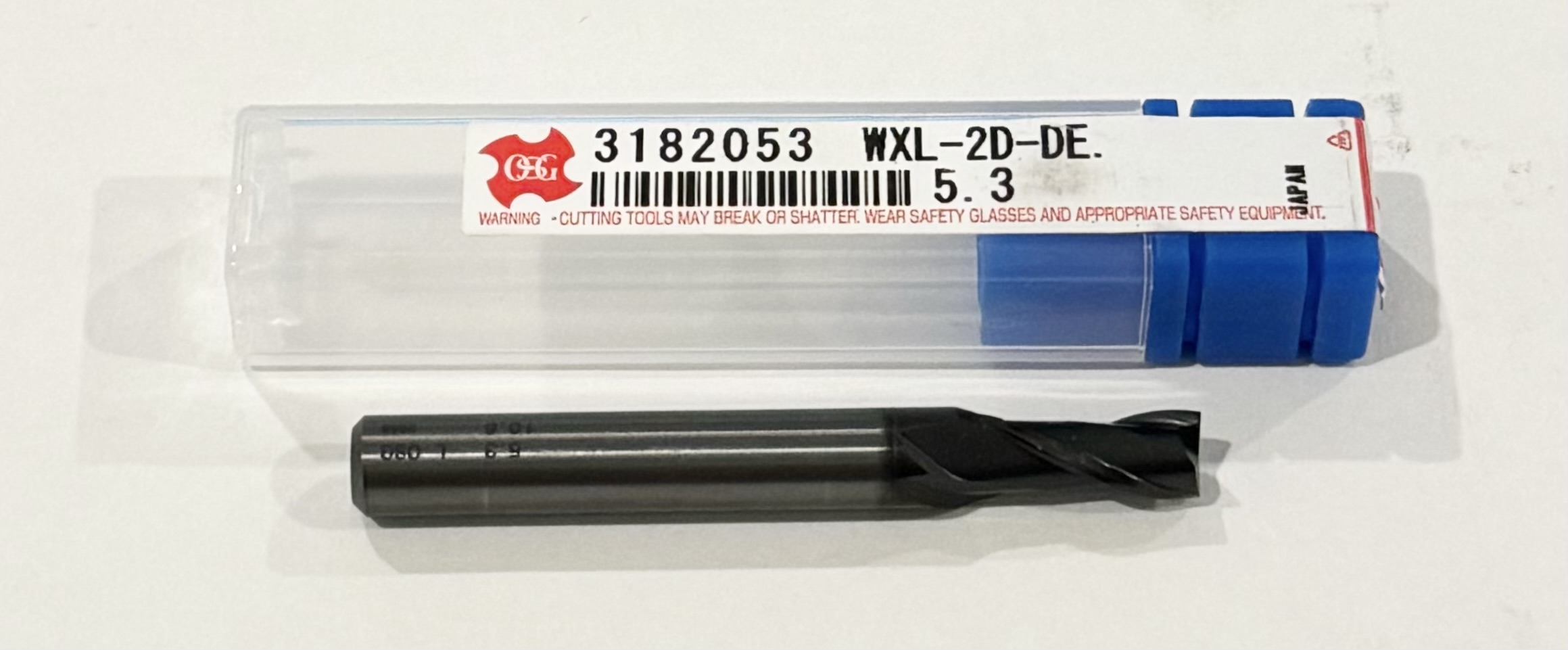

OSG 5.3mm Carbide End Mill 2 Flute Cr Coated 3182053

PRODUCT DESCRIPTION

Dimension Type	Metric
Milling Diameter	5.30mm
Length of Cut	10.60 mm
Shank Dia.	6.00 mm
Overall Length	50.00 mm
Milling Dia.	5.30 mm

Details

End Mill Material	Carbide
Number of Flutes	2
Single End/Double End	Single End
End Mill Cutting Type	Center Cutting
Grade	General Purpose
Item	Square End Mill
Steel (P) Compatibility	Yes
Cast Iron (K) Compatibility	Yes
Shank Type	End Mill
Helix Angle	30 Degrees
Stainless (M) Compatibility	Yes
Finish	WXL
Hardened (H) Compatibility	No
List Number	3721
End Mill Style	Square
Cutting Direction	Right Hand
Super Alloy (S) Compatibility	No
End Mill Application	Roughing/Finishing
Non Ferrous (N) Compatibility	No
Series	EXOCARB WXL
Drilling Tool Configuration	Individual
Cutting Direction - Machining	Right Hand
Shank Type - Machining	Straight
Material - Machining	Carbide
Measurement System	Metric
Finish - Machining	WXL
Material Grade - Machining	General Purpose
Secondary Material Application	Aluminum, Nickel, Titanium
Secondary Material Application ISO Code	N, S
Primary Material Application ISO Code	H, K, M, P
Primary Material Application	Cast Iron, Hardened Steel, Stainless Steel, Steel, Tool and Die Steel
