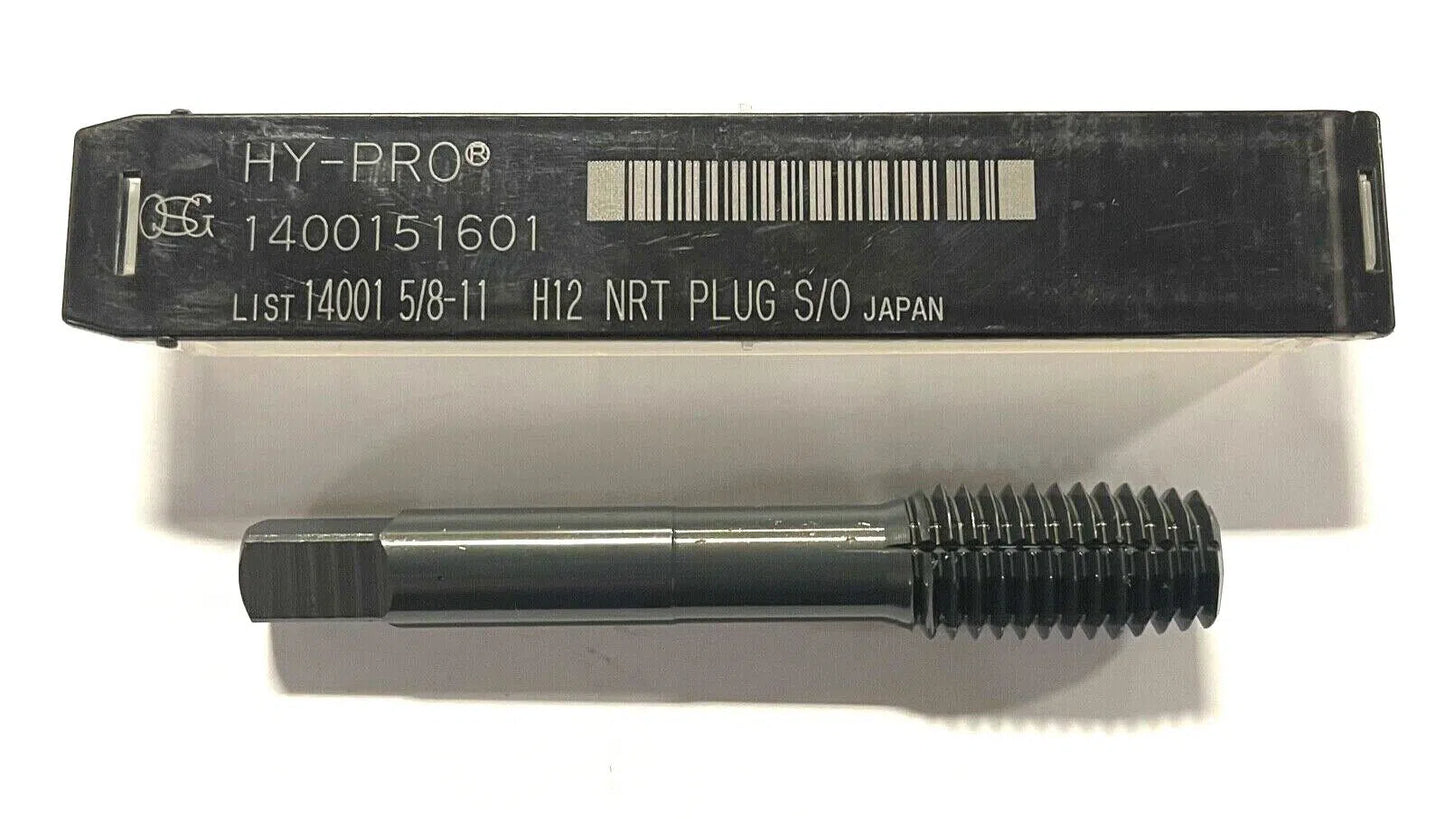

• OSG 5/8-11 Tap Cobalt Thread Forming Plug Tap H12 Black Oxide 1400151601
1 1

Michigan Wholesale Tool Supply

OSG 5/8-11 Tap Cobalt Thread Forming Plug Tap H12 Black Oxide 1400151601

OSG 5/8-11 Tap Cobalt Thread Forming Plug Tap H12 Black Oxide 1400151601

$9.10 USD
$0.00 USD $9.10 USD
Sale Sold out
Shipping calculated at checkout.
Free Shipping: Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our Shipping Policy for more details.

Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.

No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.

Low stock: 3 left
OSG

COBALT THREAD FORMING TAP


  • Tap Material: Cobalt
  • Thread Direction: Right Hand
  • Tap Chamfer: Plug
  • Tap Size: 5/8"
  • Pitch Diameter Limit: H12
  • Tap Dimension Type: Inch
  • Thread Length: 1-13/16"
  • Tap Style: Thread Forming
  • Tap Thread Size: 5/8"-11
  • Item: Thread Forming Tap
  • Overall Length: 3-13/16"
  • Shank Dia.: 0.480"
  • Number of Flutes: 0
  • Tap Finish: Oxide
  • Tap Thread Type: UNC
  • Tap Grouping: Tap
  • Number of Pieces: 1
  • Standards: ANSI
  • List Number: 14001
  • Cutting Direction - Machining: Right Hand
  • Series: 14001
  • Secondary Material Application ISO Code: H, M, P
  • Thread Limit: H12
  • Features: Performance Form Taps For Materials Less Than 32Rc
  • Secondary Material Application: Hardened Steel, Stainless Steel, Steel
  • Square Size: 0.3600 in
  • Primary Material Application: Aluminum, Brass, Bronze, Copper, Steel
  • 55% Thread Drill Size: 15.00 mm
  • Spiral Direction: Neutral
  • Coolant Fed: Non-Coolant Through
  • Material Grade - Machining: 14001
  • Primary Material Application ISO Code: N, P
  • Shank Length: 1 21/32 in
  • Thread Size: 5/8"-11
  • Threads per Inch: 11
  • Thread Standard: UNC
  • 75% Thread Drill Size: 37/64 in
  • Extended Neck: No
  • 65% Thread Drill Size: 14.80 mm
  • Country of Origin (subject to change): Japan
