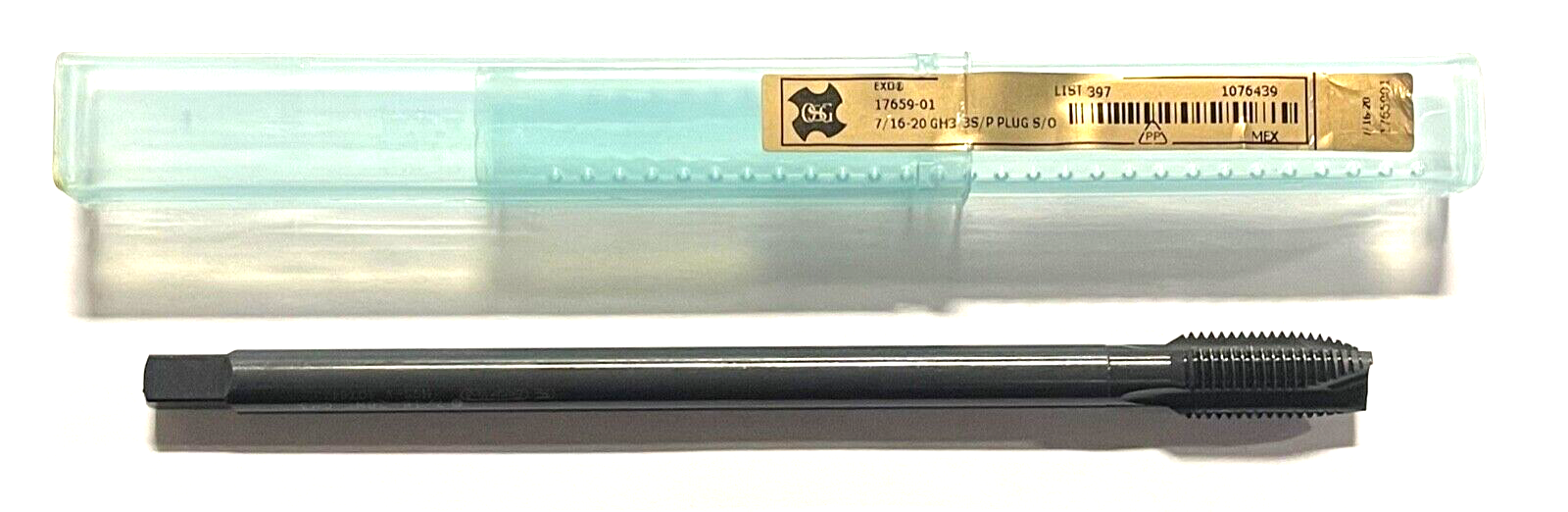

OSG 7/16-20 HSS-V Spiral Point Plug Tap Long Shank Extension GH3 3 Flute
OSG 7/16-20 HSS-V Spiral Point Plug Tap Long Shank Extension GH3 3 Flute
Regular price
$11.28 USD
Regular price
$0.00 USD
Sale price
$11.28 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 5 left
Couldn't load pickup availability
OSG
HSS-V SPIRAL POINT TAP LONG SHANK
| Thread Diameter Size (TDZ) | 7/16″ | Applicable Material | Steel | Stainless Steel |
| Threads per Inch (TPI) | 20 | Cutting Edge Material | HSSE |
| Thread Standard | UNF | Thread Tolerance Class (TCTR) | H3 |
| Overall Length (OAL) | 6.00″ | Chamfer | 3.5P-4.5P |
| Usable Length (LU) | 1.291″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.322″ | Thread Size | 7/16″ - 20 |
Product Features
Remarks
•EXOTAP® VA-3 Spiral Point Taps - Long Shank
•A special relief combined with the flute construction provides free cutting, rapid chip removal in stainless steel
•List 397
