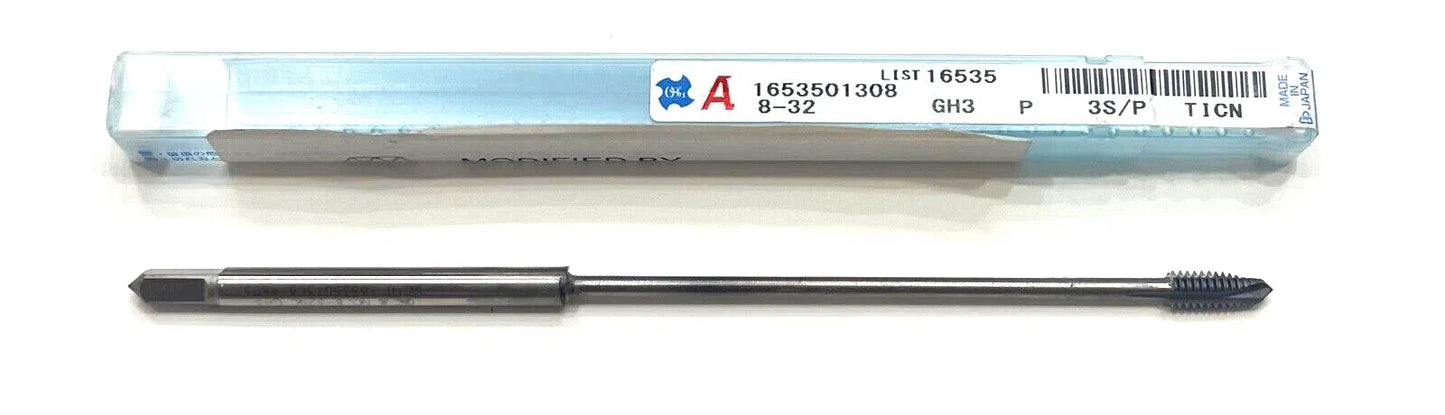

OSG 8-32 VC-10 Spiral Point Plug Tap Long Shank TiCN Coating 3 Flute 1653501308
OSG 8-32 VC-10 Spiral Point Plug Tap Long Shank TiCN Coating 3 Flute 1653501308
Regular price
$8.00 USD
Regular price
$0.00 USD
Sale price
$8.00 USD
Unit price
/
per
Shipping calculated at checkout.
11 in stock
Couldn't load pickup availability
OSG
VC-10 SPIRAL POINT PLUG TAP
| Thread Standard | | UNC | | Cutting Edge Material | VC10 |
| Thread Size | #8 - 32 | Tool Type | Spiral Point Tap |
| Thread Diameter Size (TDZ) | #8 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 32 | Connection Diameter Machine Side (DCONMS) | 0.167″ |
| Thread Tolerance Class (TCTR) | | H3 | | Thread Cutting Part Length (THL) | 0.444″ |
| Usable Length (LU) | 0.897″ | End Shape | Spiral Point |
| Overall Length (OAL) | 4.72″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | 3.5P-4.5P | Measurement Type | Wire Gauge |
| Coating | Vanadium | Series/List # | 16535 |
| Flute Count (NOF) | 3 |
