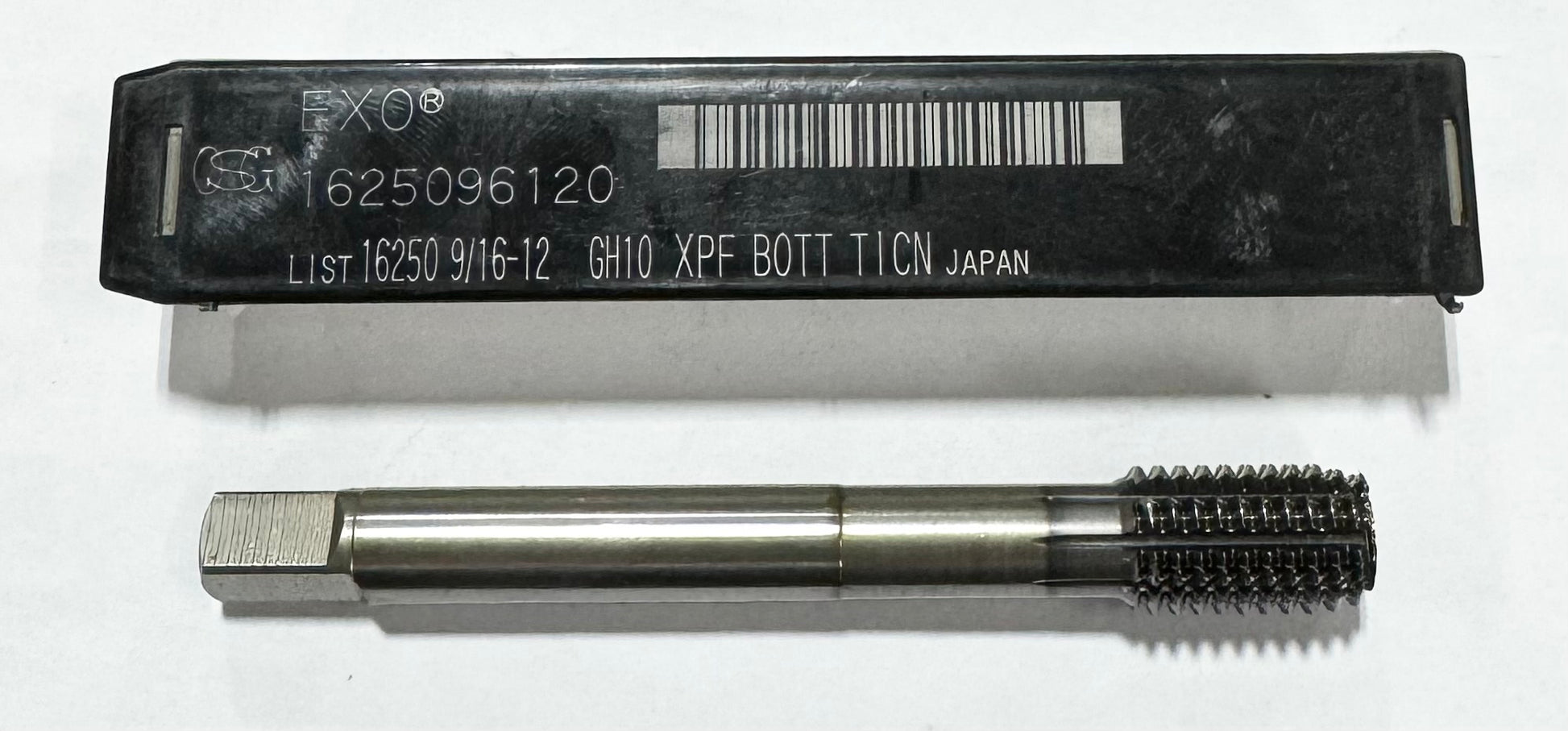

OSG 9/16"-12 Cobalt Thread Forming Bottoming Tap TiCN Coated GH10 2.5P
OSG 9/16"-12 Cobalt Thread Forming Bottoming Tap TiCN Coated GH10 2.5P
Regular price
$60.99 USD
Regular price
$0.00 USD
Sale price
$60.99 USD
Unit price
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 1 left
Couldn't load pickup availability
OSG 9/16"-12 Cobalt Thread Forming Bottoming Tap TiCN Coated GH10 2.5P
PRODUCT DESCRIPTION
| Description | Forming Tap; 9/16" - 12 x 4.33" OAL x 1.969" LU x 0.429" Shank Dia. ; HSSCo ; Vanadium ; | H10 | ; Series 16250 |
|---|---|
| Applicable Material | Steel|Stainless Steel|Hard Materials|Super-Alloys / Titanium|Aluminum / Non-Ferrous Materials |
| Brand | OSG |
| Chamfer | 2.5P |
| Coating | V Coating |
| Connection Diameter Machine Side Dconms | 0.429" |
| Coolant Supply Property CSP | External |
| Cutting Edge Material | HSSCo |
| Measurement Type | Inch |
| Overall Length Oal | 4.33" |
| Serieslist | 16250 |
| Style | Forming |
| Thread Cutting Part Length THL | 1-21/32" |
| Thread Diameter Size TDZ | 9/16" |
| Thread Size | 9/16" - 12 |
| Thread Standard | UNC |
| Thread Tolerance Class TCTR | H10 |
| Threads Per Inch Tpi | 12 |
| Tool Type | High Performance Tap |
| Usable Length Lu | 1.969" |
