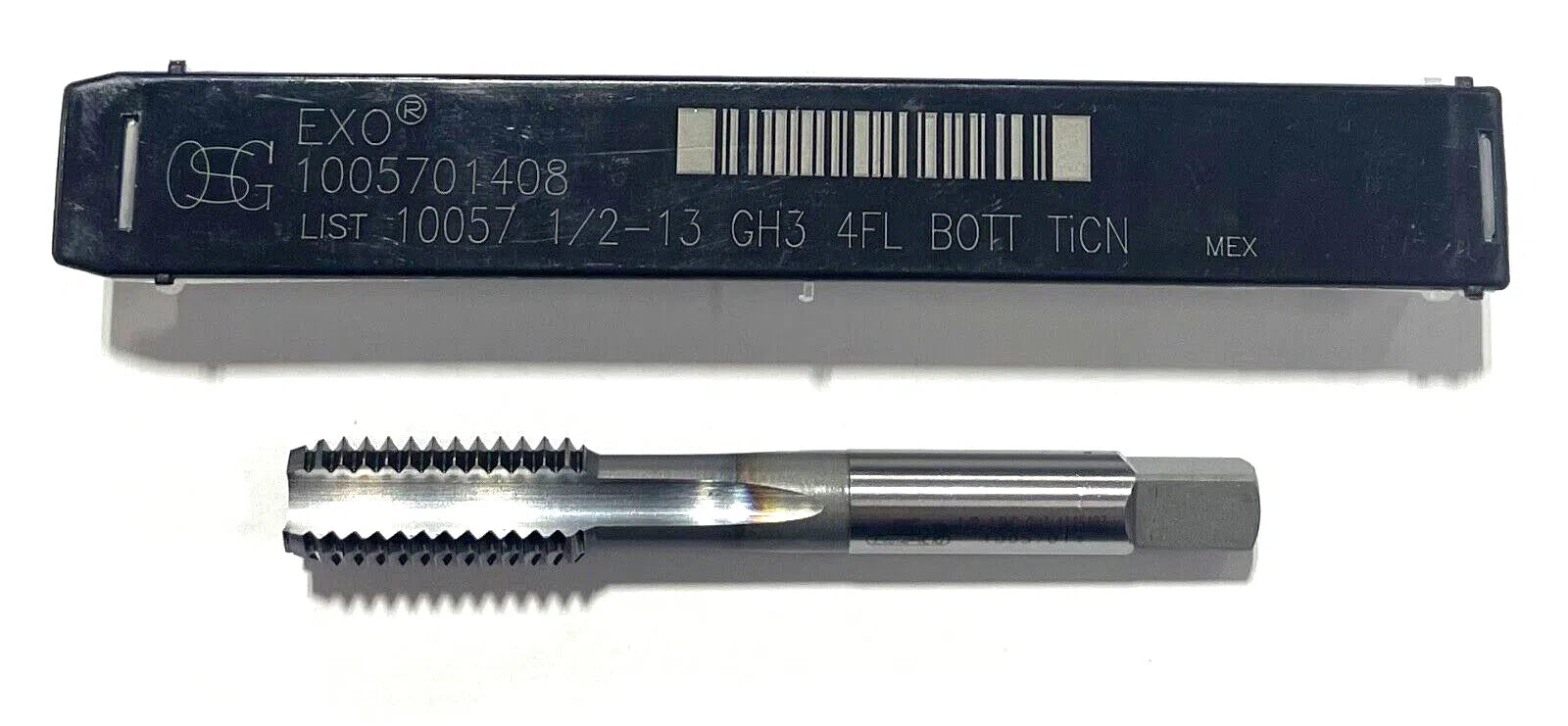

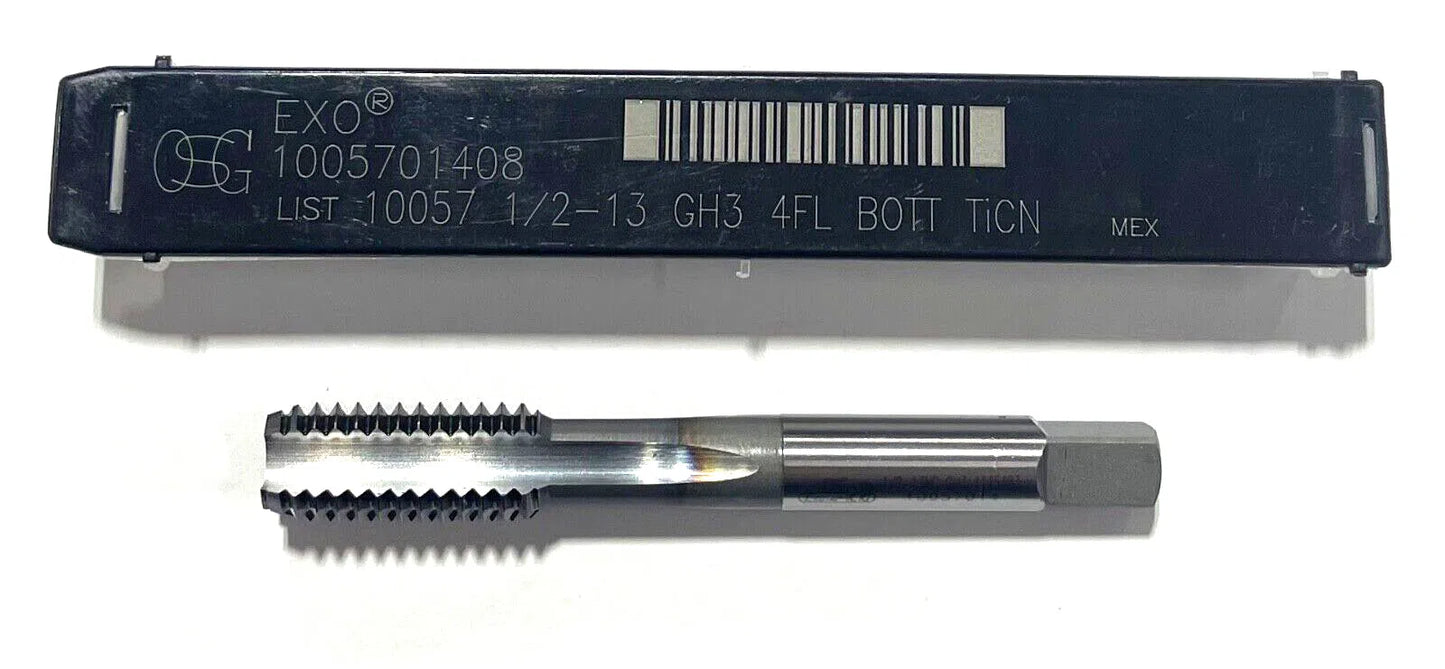

OSG EXOTAP 1/2"-13 DC Oil Tap 4 Flute GH3 TiCN Coating Bottoming Tap
OSG EXOTAP 1/2"-13 DC Oil Tap 4 Flute GH3 TiCN Coating Bottoming Tap
Regular price
$13.10 USD
Regular price
$0.00 USD
Sale price
$13.10 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 3 left
Couldn't load pickup availability
OSG
DC OIL EXOTAP
| Thread Diameter Size (TDZ) | 1/2″ | Tool Type | High Performance Tap |
| Threads per Inch (TPI) | 13 | Chamfer | 1.5P-2P |
| Thread Standard | | NC | | Coating | TiCN |
| Overall Length (OAL) | 3-3/8″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-21/32″ | End Shape | Chamfer |
| Usable Length (LU) | 1.933″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 10057 |
| Cutting Edge Material | VC10 | Thread Size | 1/2″ - 13 |
| Thread Tolerance Class (TCTR) | | H3 | |
