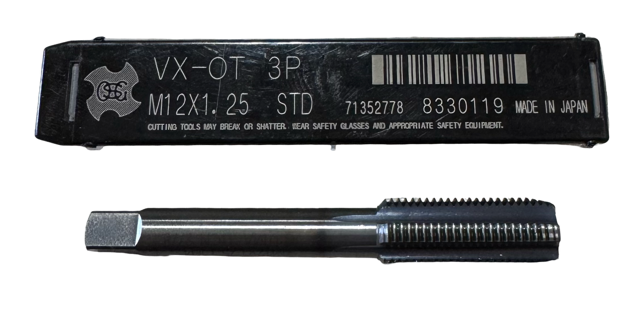

OSG M12 x 1.25 Carbide Straight Flute Tap TiCN 5 Flute Modified Bottoming Tap
OSG M12 x 1.25 Carbide Straight Flute Tap TiCN 5 Flute Modified Bottoming Tap
Regular price
$145.99 USD
Regular price
$0.00 USD
Sale price
$145.99 USD
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $25 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $25.
Quantity
Low stock: 1 left
Couldn't load pickup availability
OSG M12 x 1.25 Carbide Straight Flute Tap TiCN 5 Flute Modified Bottoming Tap
PRODUCT DESCRIPTION
| Thread Diameter Size (TDZ) | M12 | Thread Tolerance Class (TCTR) | OH4 |
| Thread Pitch (TP) | 1.25 mm | Chamfer | 2.5P-3P |
| Thread Standard | Metric | Coating | TiCN |
| Overall Length (OAL) | 80 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 38 mm | Style | Modified Bottoming |
| Usable Length (LU) | 38 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 8-1/2″ | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Series/List # | 341 |
| Applicable Material | | Hard Materials | | Thread Size | M12 × 1.25 |
| Cutting Edge Material | Carbide |
