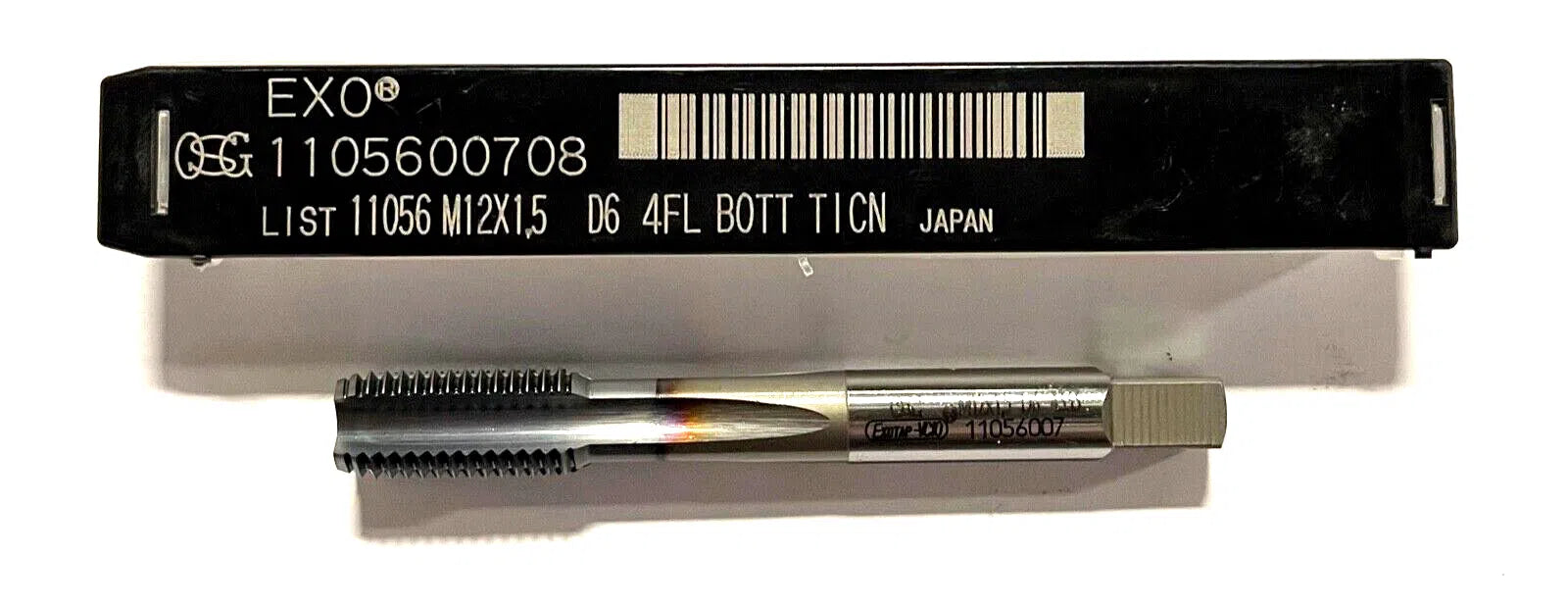

OSG M12 x 1.5 Tap HSSPM EXOTAP DC Bottoming D6 4FL TiCN Coating Straight Flute
OSG M12 x 1.5 Tap HSSPM EXOTAP DC Bottoming D6 4FL TiCN Coating Straight Flute
Regular price
$8.30 USD
Regular price
$0.00 USD
Sale price
$8.30 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
13 in stock
Couldn't load pickup availability
OSG
HSSPM EXOTAP DC STRAIGHT FLUTE TAP
| Thread Diameter Size (TDZ) | M12 | Thread Tolerance Class (TCTR) | D6 |
| Thread Pitch (TP) | 1.5 mm | Chamfer | 1.5P-2P |
| Thread Standard | Metric | Coating | TiCN |
| Overall Length (OAL) | 3-3/8″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-21/32″ | End Shape | Chamfer |
| Usable Length (LU) | 49 mm | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 9.32 mm | Shank Type | Straight |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 0 Degrees | Series/List # | 11056 |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials | Thread Size | M12 × 1.5 |
| Cutting Edge Material | HSSPM |
