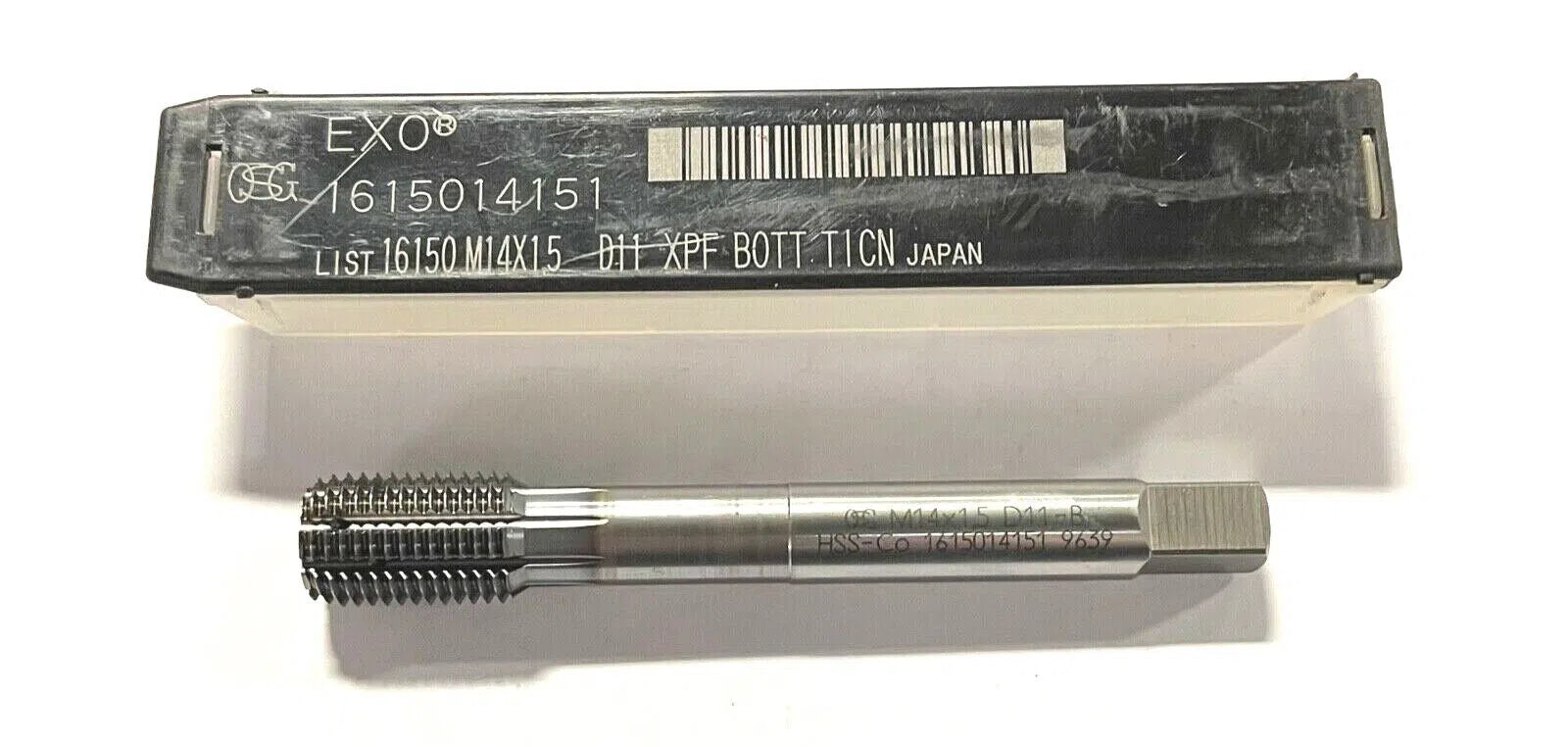

OSG M14 x 1.5mm Cobalt Thread Forming Tap D11 Bottoming High Performance TiCN
OSG M14 x 1.5mm Cobalt Thread Forming Tap D11 Bottoming High Performance TiCN
Regular price
$22.56 USD
Regular price
$0.00 USD
Sale price
$22.56 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
26 in stock
Couldn't load pickup availability
OSG
COBALT THREAD FORMING TAP
| Tool Type | High Performance Tap | Coating | TiCN |
| Thread Diameter Size (TDZ) | M14 | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 100 mm | Chamfer | 2.5P |
| Thread Cutting Part Length (THL) | 2-1/2″ | Measurement Type | Metric |
| Usable Length (LU) | 50.1 mm | Style | Forming |
| Connection Diameter Machine Side (DCONMS) | 10.89 mm | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | D11 | Cutting Edge Material | HSSCo |
| Thread Standard | Metric | Series/List # | 16150 |
| Applicable Material | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
