Michigan Wholesale Tool Supply

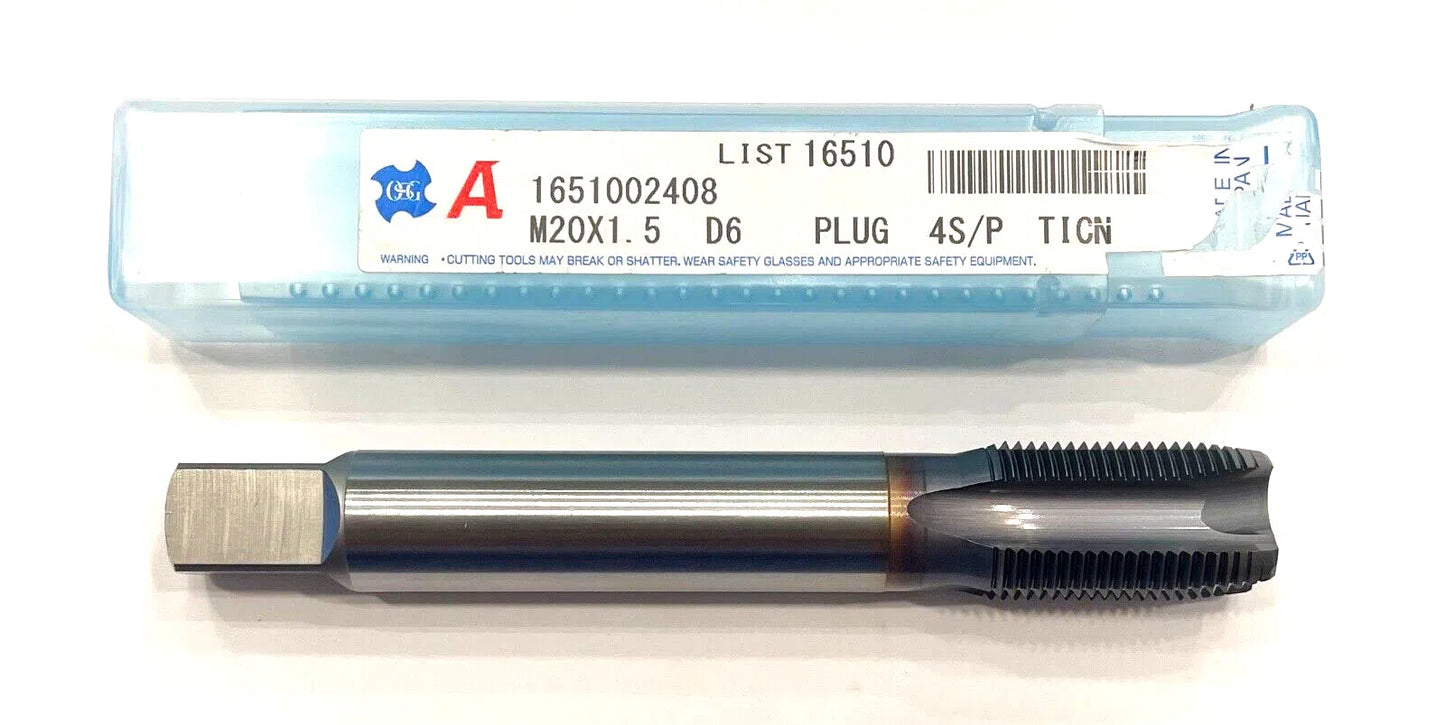

OSG M20 x 1.5 VC-10 Spiral Point Plug Tap TiCN Coating 4 Flute D6
OSG M20 x 1.5 VC-10 Spiral Point Plug Tap TiCN Coating 4 Flute D6
Regular price
$26.93 USD
Regular price
$0.00 USD
Sale price
$26.93 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
OSG
VC-10 SPIRAL POINT PLUG TAP
| Thread Standard | Metric | Cutting Edge Material | VC10 |
| Thread Size | M20 × 1.5 | Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | M20 | Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Pitch (TP) | 1.5 mm | Connection Diameter Machine Side (DCONMS) | 16.56 mm |
| Thread Tolerance Class (TCTR) | D6 | Thread Cutting Part Length (THL) | 30 mm |
| Usable Length (LU) | 44 mm | End Shape | Spiral Point |
| Overall Length (OAL) | 125 mm | Style | Plug |
| Chamfer | 2P-3P | Measurement Type | Metric |
| Coating | V Coating | Series/List # | 16510 |
| Flute Count (NOF) | 4 |
