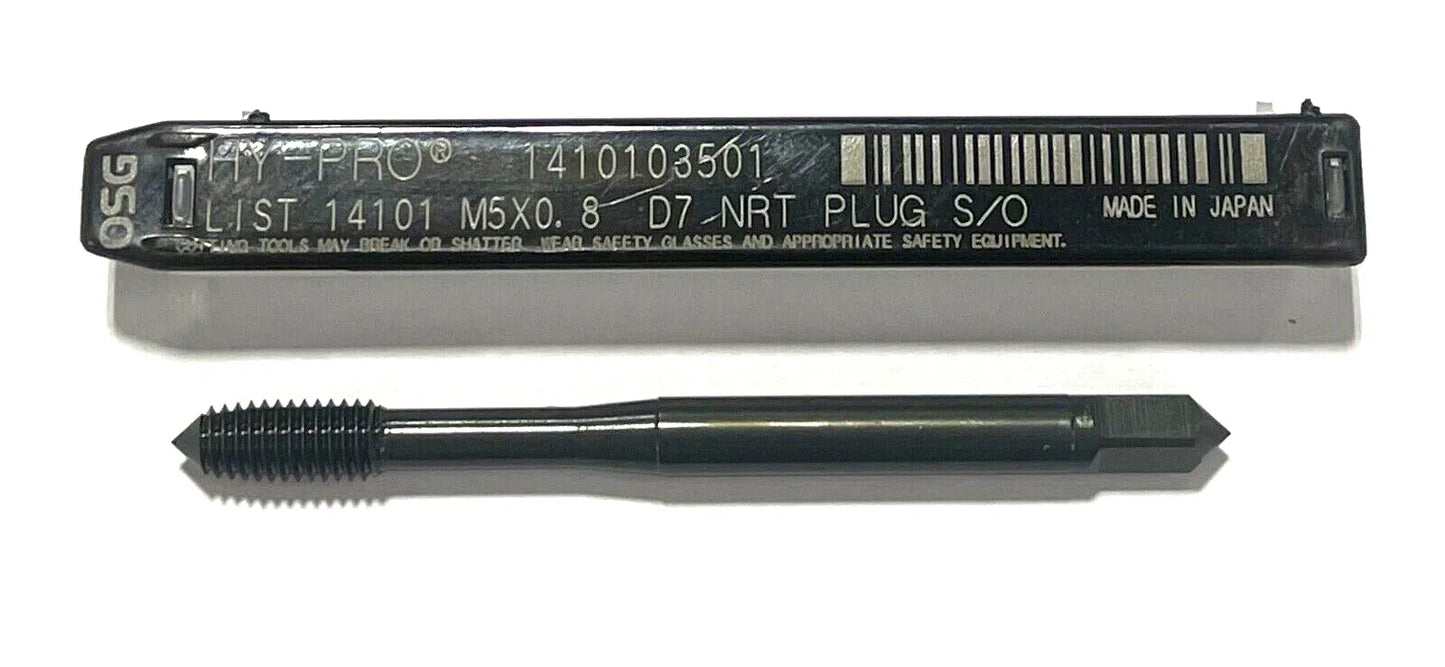

OSG M5 x 0.8 Cobalt Thread Forming Plug Tap D7 Steam Oxide 1410103501
OSG M5 x 0.8 Cobalt Thread Forming Plug Tap D7 Steam Oxide 1410103501
Regular price
$4.36 USD
Regular price
$0.00 USD
Sale price
$4.36 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 3 left
Couldn't load pickup availability
OSG
COBALT THREAD FORMING TAP
| Tool Type | | Forming Tap | | Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | Hard Materials | |
| Thread Diameter Size (TDZ) | M5 | Coating | | Black Oxide | |
| Overall Length (OAL) | 60 mm | Coolant Supply Property (CSP) | External |
| Thread Cutting Part Length (THL) | 7/8″ | Helix Angle | 0 Degrees |
| Usable Length (LU) | 22.2 mm | Chamfer | 4.5P |
| Connection Diameter Machine Side (DCONMS) | 4.92 mm | Measurement Type | Metric |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | | D7 | | Cutting Edge Material | HSSCo |
| Thread Standard | Metric | Series/List # | 14101 |
