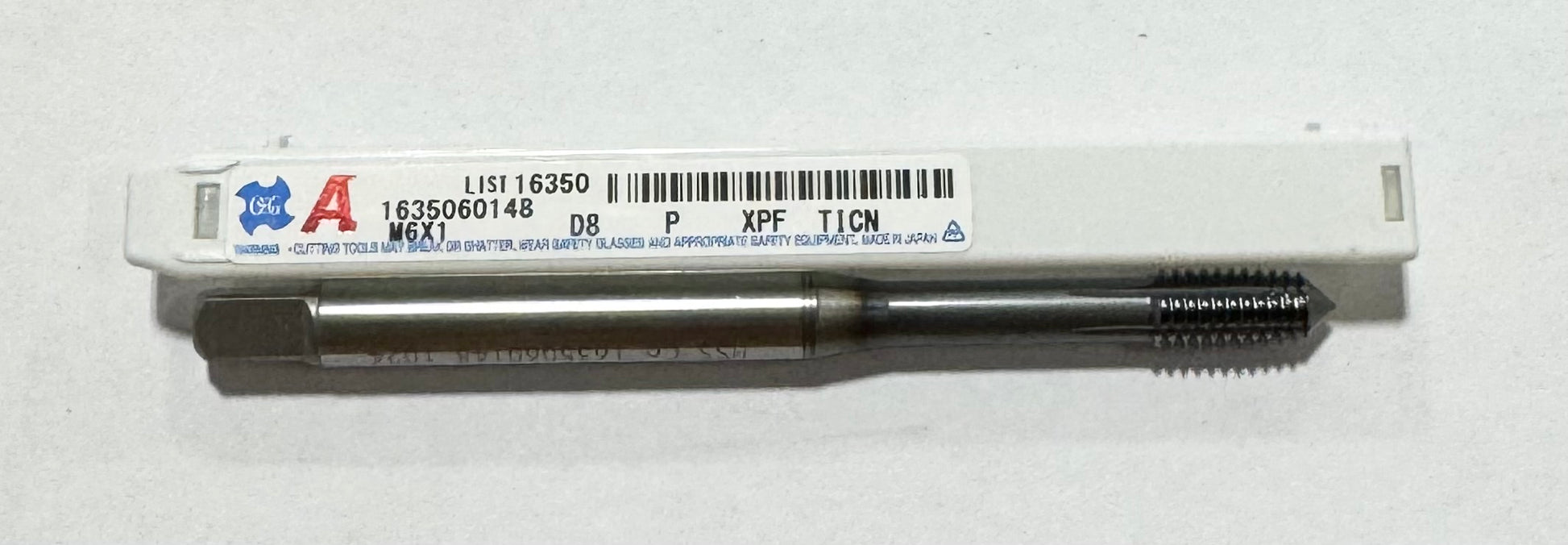

OSG M6 x 1mm Cobalt Thread Forming Plug Tap 6H TiCN Coated
OSG M6 x 1mm Cobalt Thread Forming Plug Tap 6H TiCN Coated
Regular price
$10.92 USD
Regular price
$0.00 USD
Sale price
$10.92 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
Low stock: 4 left
Couldn't load pickup availability
| Thread Size (mm) | M6x1 |
| Thread Standard | Metric |
| Chamfer | Plug |
| Chamfered Threads | 4-4.5P |
| Material | Cobalt |
| Coating/Finish | V |
| Coolant Through | No |
| Class Of Fit | 6H |
| Thread Limit | D8 |
| Overall Length (Decimal Inch) | 3.1496 |
| Overall Length (mm) | 80.00 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.3937 |
| Thread Length (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Shank Diameter (mm) | 6.48 |
| Square Length (mm) | 7.94 |
| Material Application | Cast Aluminum; Aluminum; Alloy Steel; Stainless Steel; Carbon Steel; Titanium; Die Steel; High-Nickel Alloy; Hardened Steel |
| Application | Through-Hole Threading |
| Series | 16350 |
| Tapping Depth (Decimal Inch) | 1.1811 |
| Tapping Depth (mm) | 30.00 |
| Square Size (Decimal Inch) | 0.1929 |
| Square Size (mm) | 4.85 |
| Material Application Code | P; H; M; N |
| Trade Name | EXOPRO XPF |
