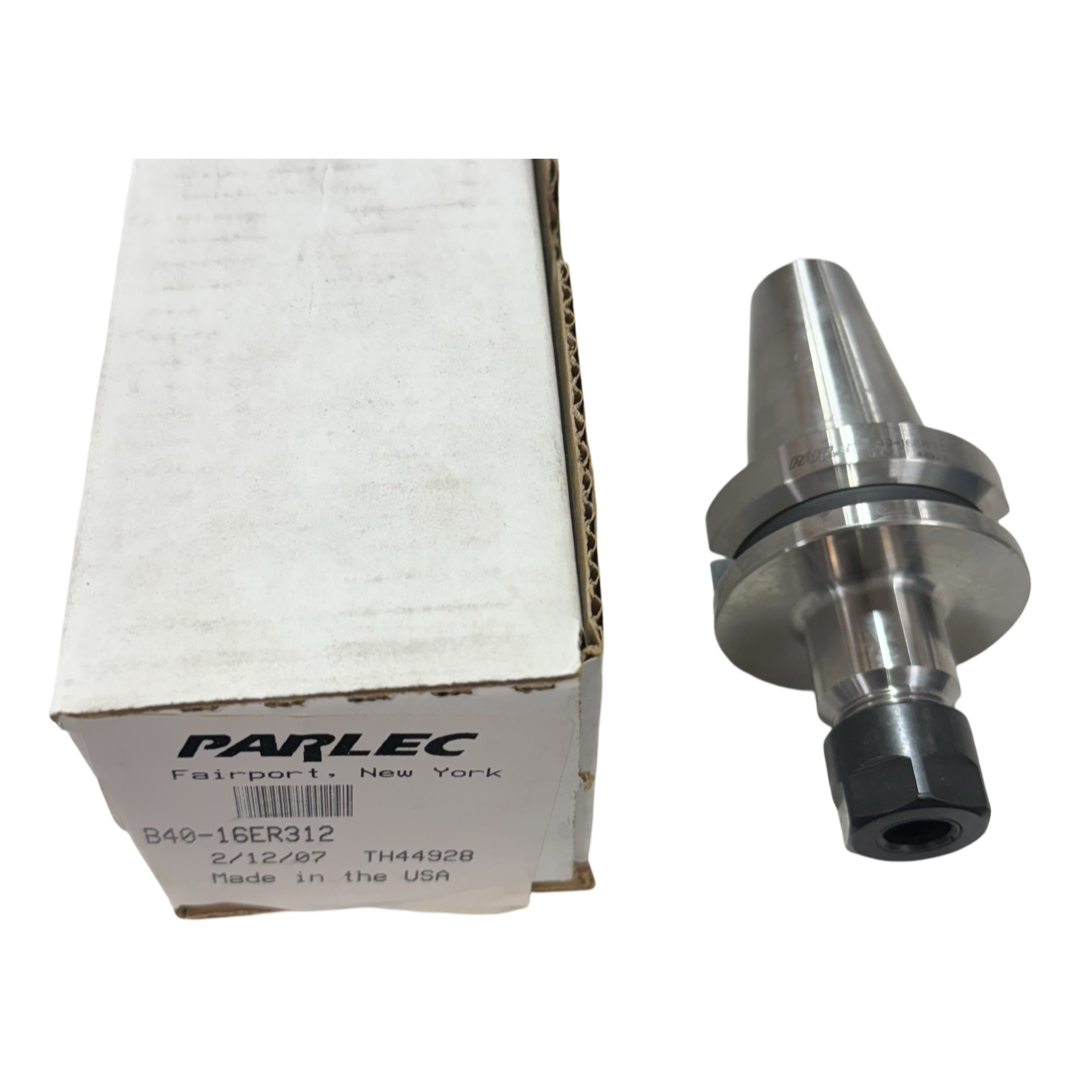

Parlec BT40 x ER16 Collet Chuck 3" Projection USA Made

PRODUCT DESCRIPTION

Brand

PARLEC

Product Type

BT Collet Chuck

Manufacturer Part Number

B40-16ERF300

Taper Size

BT40

For Collet Series

ER16

For Min Collet Size

0.02 in

For Max Collet Size

0.393 in

Projection

3 in

Nut Diameter

1.1 in

T.I.R. Tolerance

0.0002 in

Max Speed

25,000 RPM

Balance Rating

G2.5

Torque - Maximum

52 ft-lb

Contact Type

Single Contact

Coolant Supply

Non-Coolant Through

Includes Nut

Nut Included

Compatible Nut Model Number

16ERHN

Compatible Backup Screw Model Number

BS-20

Compatible Collet Wrench

ECN20W

Number of Coolant Ports

0

Material

Steel

Finish

Nickel Chrome

Standards

DIN 6499

UNSPSC

27112808

Country of Origin

USA
