Michigan Wholesale Tool Supply

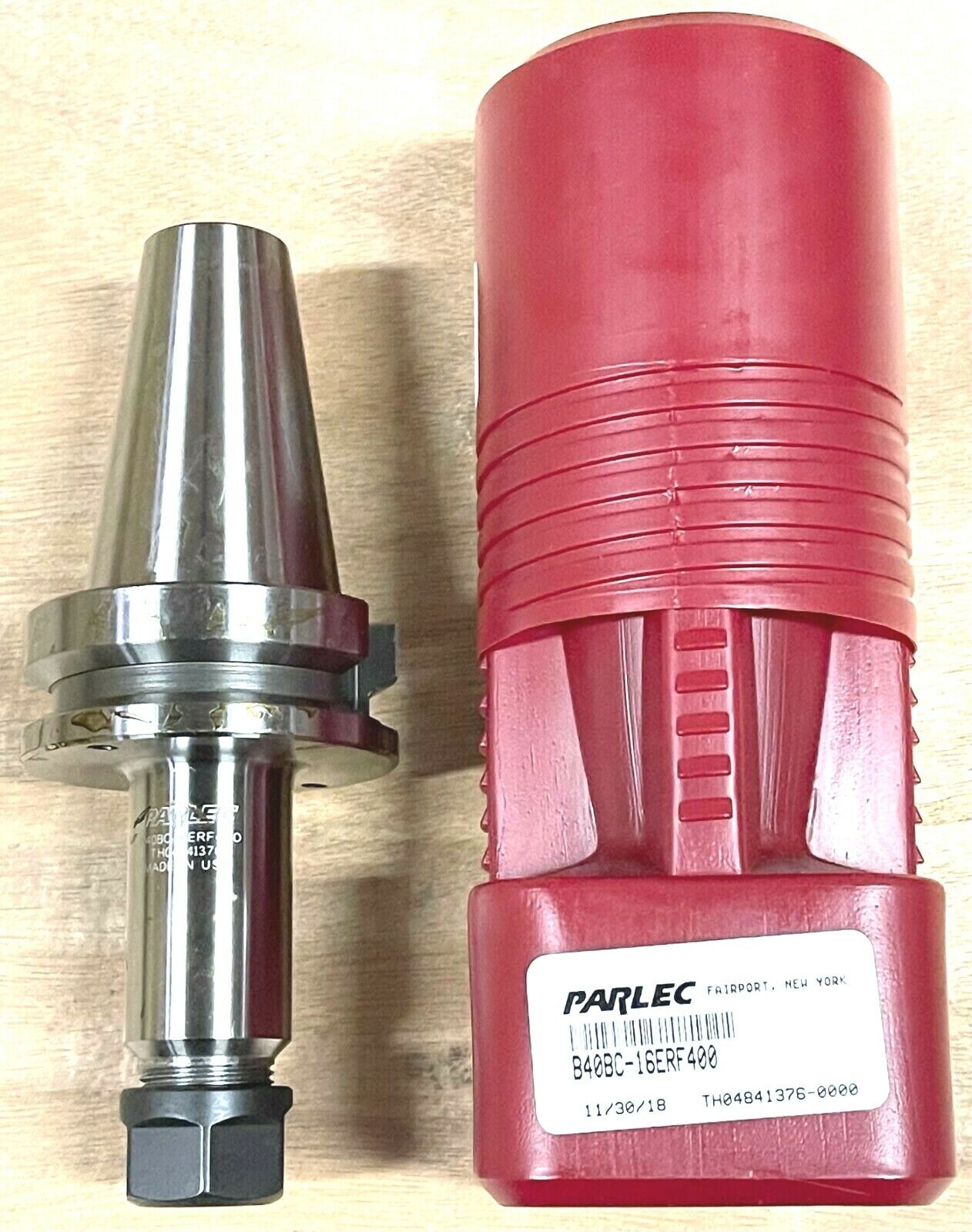

Parlec ER16 Collet Chuck Tool Holder 0.5mm x 10mm BT40 Taper Shank
Parlec ER16 Collet Chuck Tool Holder 0.5mm x 10mm BT40 Taper Shank
Regular price
$61.16 USD
Regular price
$0.00 USD
Sale price
$61.16 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
Low stock: 8 left
Couldn't load pickup availability
PARLEC
ER16 COLLET CHUCK TOOL HOLDER
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Projection (Decimal Inch) | 4.0000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 6.5800 |
| Actuator Type | Wrench |
| Type | ER Coolant Collet |
| Nose Diameter (Decimal Inch) | 1.1100 |
| PSC Code | 5136 |
| Balanced to (RPM) | 25,000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 1.1100 |
