Michigan Wholesale Tool Supply

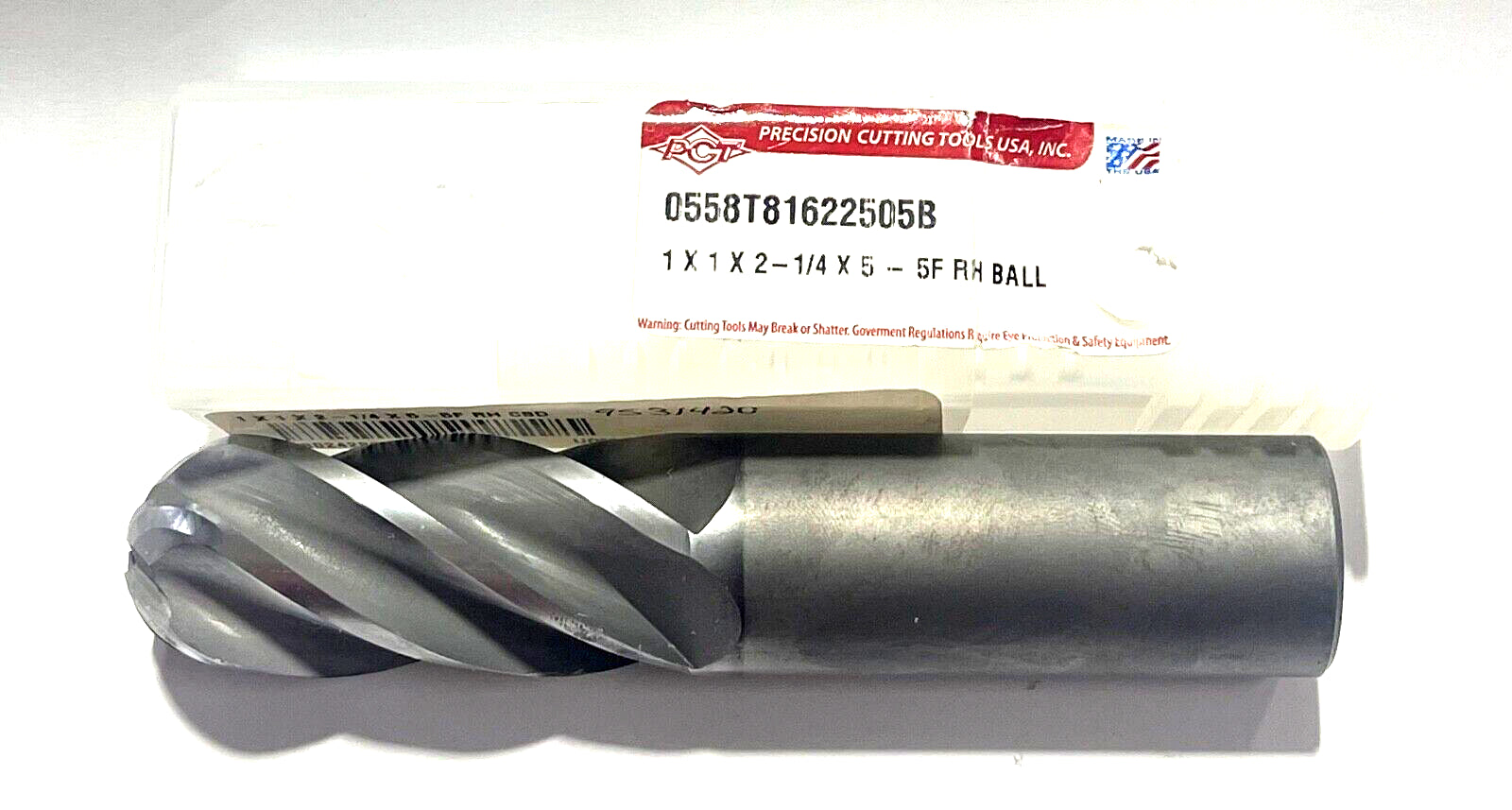

PCT 1" Carbide Ball Nose End Mill 5 Flute Variable Pitch H5008 Exxtral Silver
PCT 1" Carbide Ball Nose End Mill 5 Flute Variable Pitch H5008 Exxtral Silver
Regular price
$68.43 USD
Regular price
$0.00 USD
Sale price
$68.43 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 2 left
Couldn't load pickup availability
PCT
USA MADE
SOLID CARBIDE BALL NOSE END MILL
| Cutting Diameter (DC) | 1″ | Grade | H5008 Exxtral Silver |
| Connection Diameter Machine Side (DCONMS) | 1″ | Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 2-1/4″ | Length Group | Long |
| Overall Length (OAL) | 5″ | End Shape | Ballnose |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AITiCrN | Shank Standard | h6 |
| Flute Count (NOF) | 5 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 35 Degrees | Decimal Equivalent | 1″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 2-1/4″ | Series/List # | 558 |
| Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.014 ″/tooth |
| Application | | Finish | HEM | Profiling | Semi Finish | | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Corner Radius (RE) | 1/2″ | Shank Size (SS) | 1″ |
| Number of Teeth | 5 |
