Michigan Wholesale Tool Supply

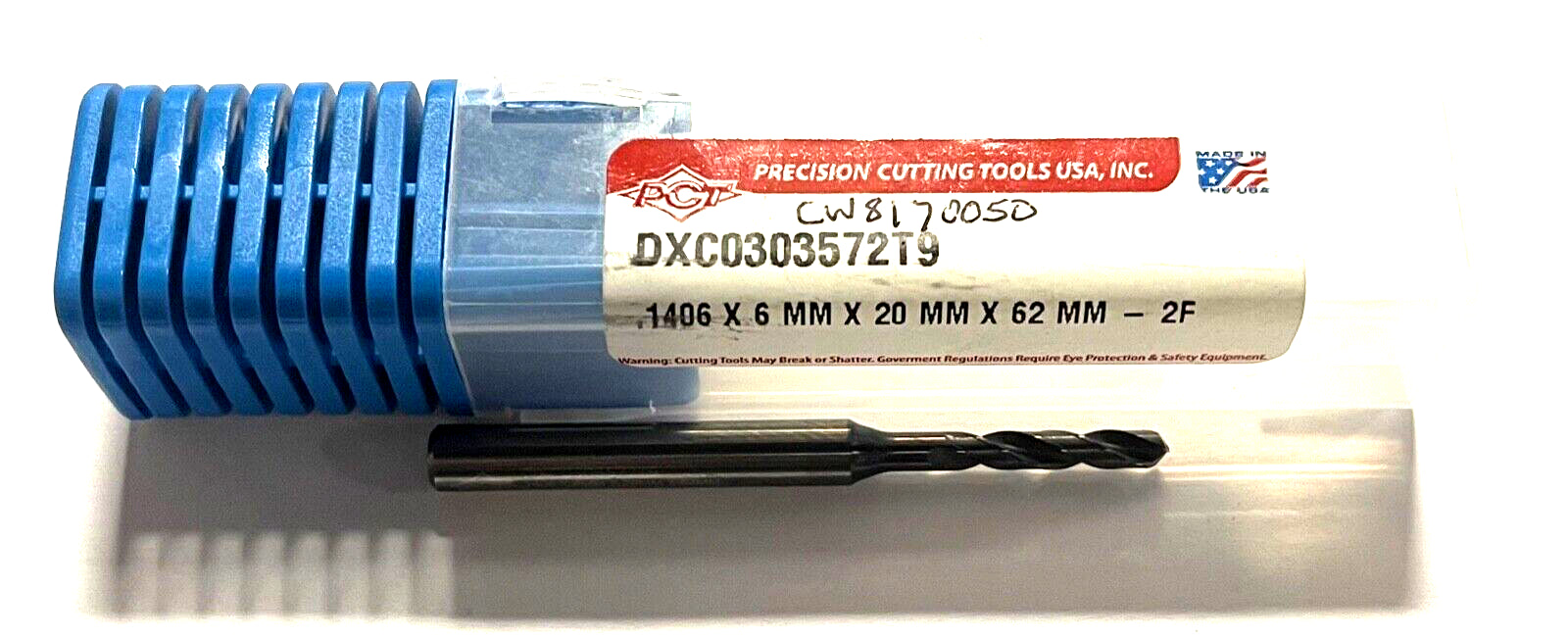

PCT .1406 Solid Carbide Double Margin Drill 3xD Coolant Thru 2FL Varianta Supral
PCT .1406 Solid Carbide Double Margin Drill 3xD Coolant Thru 2FL Varianta Supral
Regular price
$15.14 USD
Regular price
$0.00 USD
Sale price
$15.14 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 4 left
Couldn't load pickup availability
PRECISION CUTTING TOOLS
USA MADE

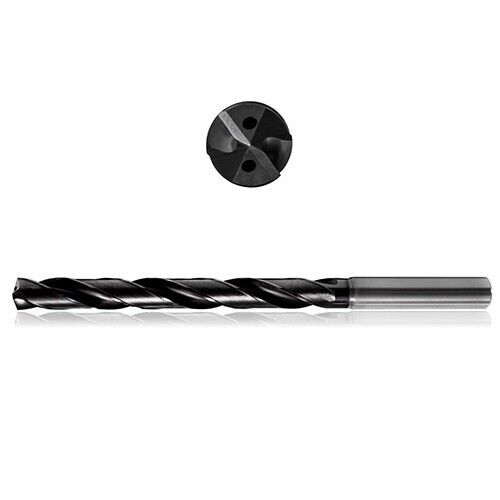

SOLID CARBIDE DOUBLE MARGIN DRILL 3XD
| Drill Bit Size / Cutting Diameter (DC) | 0.1406 mm | Shape | Round |
| Decimal Equivalent | 0.0055″ | Cutting Edge Material | Carbide |
| Length Group | 3xD | Tool Type | Solid Carbide Drill |
| Coating | Varianta Supral | Flute Type | Helical |
| Applicable Material | Steel | Stainless Steel | Grade | H5009 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Series/List # | DXC |
| Point Angle (SIG) | 140 Degrees | Usable Length (LU) | 0.5765 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Length Chip Flute (LCF) | 20 mm |
| Number of Teeth | 2 | Overall Length (OAL) | 62 mm |
| Shank Length (LS) | 1.6535 mm | Flute Count (NOF) | 2 |
| Shank Type | Cylindrical | Feature | DOUBLE-MARGIN DRILL, COOLANT THRU |
| Shank Standard | h6 | Cutting Direction (HAND) | Right Hand |
